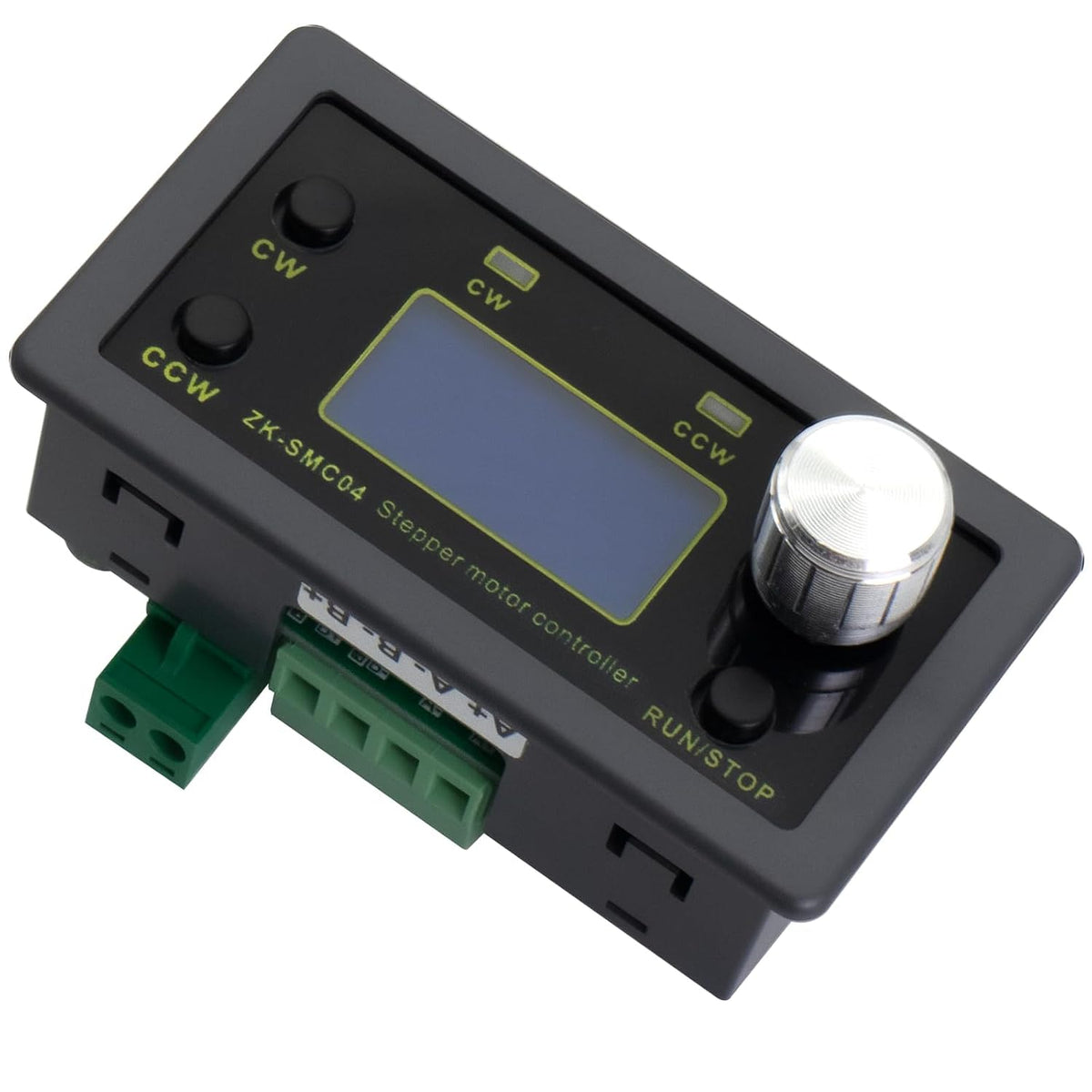

MAKERELE ZK-SM04 Stepper Motor Controller
ZK-SM04 Stepper Motor Controller
The MAKERELE ZK-SM04 combines a stepper-motor driver and an onboard motion controller for simple local control. It supports forward and reverse running, pulse generation and speed adjustment without requiring a separate PLC for basic motion tasks.
Key Features
- Integrated control: onboard controls for direction, pulse and speed settings.
- DC input: designed for a 10–30 V DC supply.
- Motor reference: source data lists 42/57/86 mm stepper frames, commonly referenced as NEMA 17/23/34.
- Visible connections: dedicated power, motor and control terminals support orderly wiring.
- Application flexibility: useful for basic positioning, feeding, indexing and test fixtures after electrical compatibility is confirmed.
Specification Reference
| Model | ZK-SM04 |
|---|---|
| Input voltage | DC 10–30 V |
| Current reference | 6.6 A controller-module reference |
| Control functions | Forward/reverse, pulse and speed adjustment |
| Motor reference | 42/57/86 mm stepper motor frames |
| SKU | MK-SMC-ZK-SM04 |
Selection and Installation
Frame size alone does not confirm compatibility. Before wiring, verify the motor phase current, winding arrangement, supply voltage and required motion profile. Set parameters with power isolated and use qualified personnel for installation. Provide suitable ventilation and enclosure protection for the operating environment.
FAQ
Can this controller be selected only by NEMA size?
No. NEMA size describes the mounting frame; voltage, current and winding data must also match.
Does it need an external pulse generator for basic operation?
The controller includes onboard motion controls for basic forward/reverse, pulse and speed functions. Confirm the required control mode before purchase.
