MAKERELE Zinc Die Cast 90-Degree Liquid-Tight Connectors

MAKERELE zinc die cast 90-degree liquid-tight connectors provide an angled transition between compatible flexible conduit and electrical enclosures. Choose the trade size and pack quantity that match the conduit run and enclosure knockout.

Key features

• 90-degree routing: helps route conduit where a straight connector would require a tight bend or additional clearance.
• Zinc die cast body: metal body with a locknut, sealing components and an insulated throat visible in the source structure.

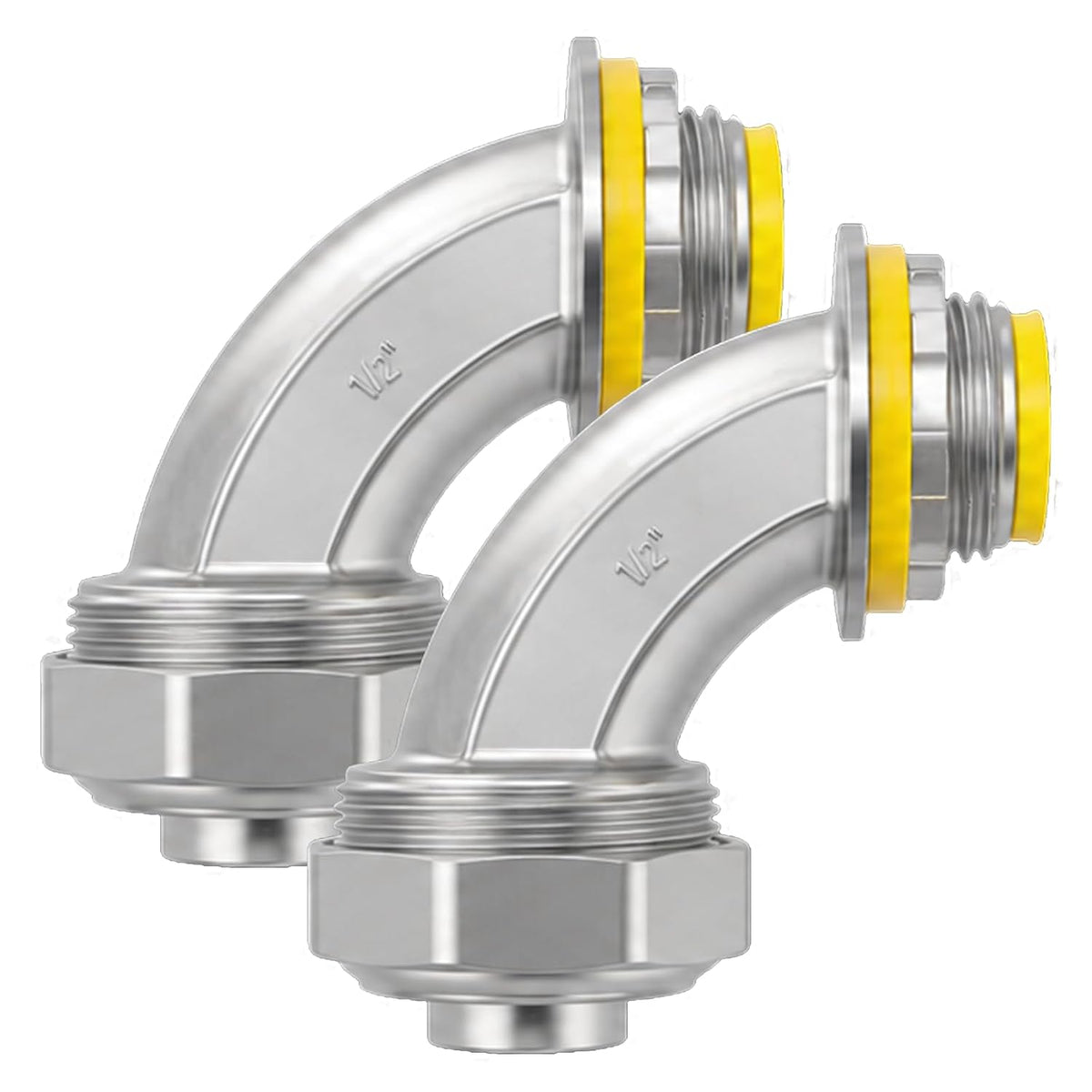

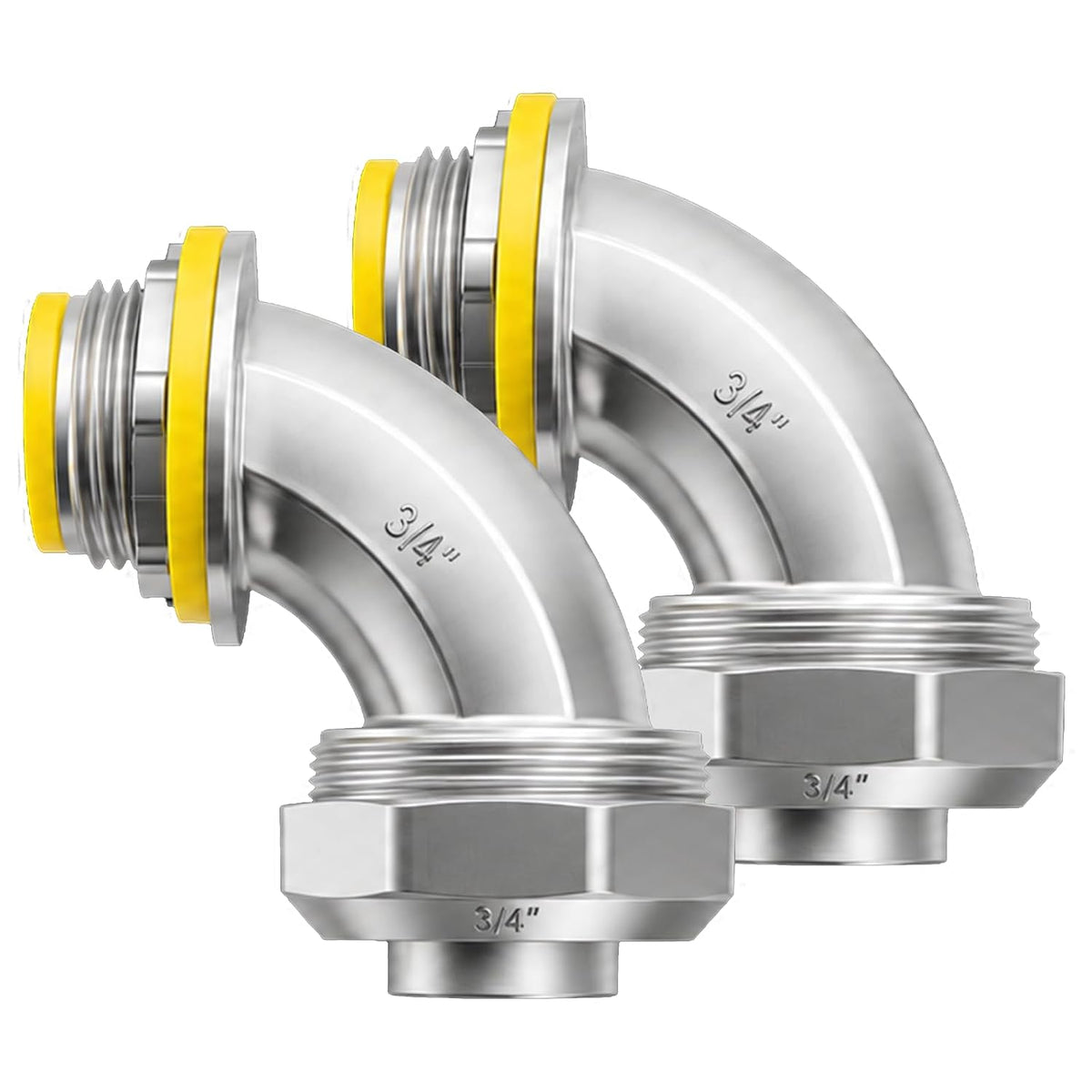

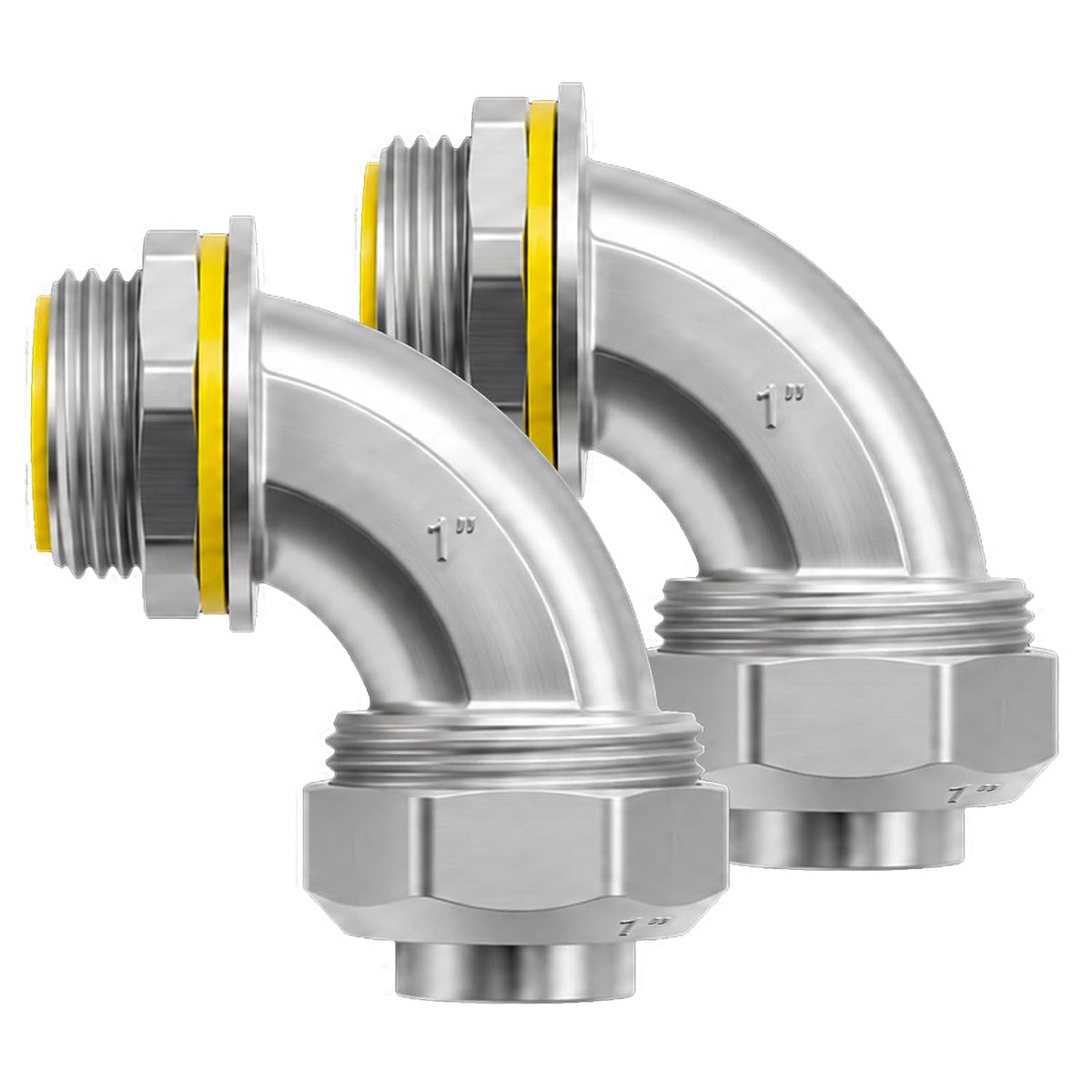

• Three trade sizes: 1/2 in., 3/4 in. and 1 in. options are listed separately.
• Job-sized packs: select 2-Pack, 5-Pack or 10-Pack without changing the connector size.
• Selection boundary: confirm conduit type, trade size, enclosure knockout and local installation requirements before use.

Construction and installation reference

The component and installation images in the gallery apply to the 90-degree connector construction. Exact dimensions and pack count follow the selected variant.

Variant reference

Installation notes

1. Disconnect power and follow the enclosure and conduit manufacturer's instructions.
2. Confirm the selected connector trade size matches both the conduit and knockout.
3. Install the threaded end through the enclosure knockout and secure the locknut.
4. Insert the compatible conduit and tighten the compression components evenly.

Electrical installation should be completed and inspected by qualified personnel under applicable local requirements.

FAQ

Can one image represent every pack quantity?
The connector construction is the same within a selected trade size; the selected pack option controls the number of connectors supplied.

When should I choose a 90-degree connector?
Use it when the conduit path needs an angled entry and available space makes a straight entry less practical.

Need a straight version?
See the MAKERELE zinc die cast straight liquid-tight connectors.
