MAKERELE YM Series Solid State Relay Modules
MAKERELE YM series solid state relay modules combine selectable 25 A, 40 A and 60 A model codes with pack quantities from one to ten pieces. Model and pack are independent choices, so confirm both before ordering.
Key features
- Three current families: source-listed 25 A, 40 A and 60 A choices.
- AA, DA and DD formats: AC/AC, DC/AC and DC/DC switching formats remain separated by model code.
- Pack-specific variants: available quantity choices are recorded per SKU rather than assumed across every model.
- Exact main-image mapping: each current Shopify variant retains its own model-and-pack main image.
- Selection boundary: confirm control signal, output type, actual load, thermal management and enclosure design before use.
Variant reference
| Model | Pack | Source-listed control/output format | SKU |
|---|---|---|---|

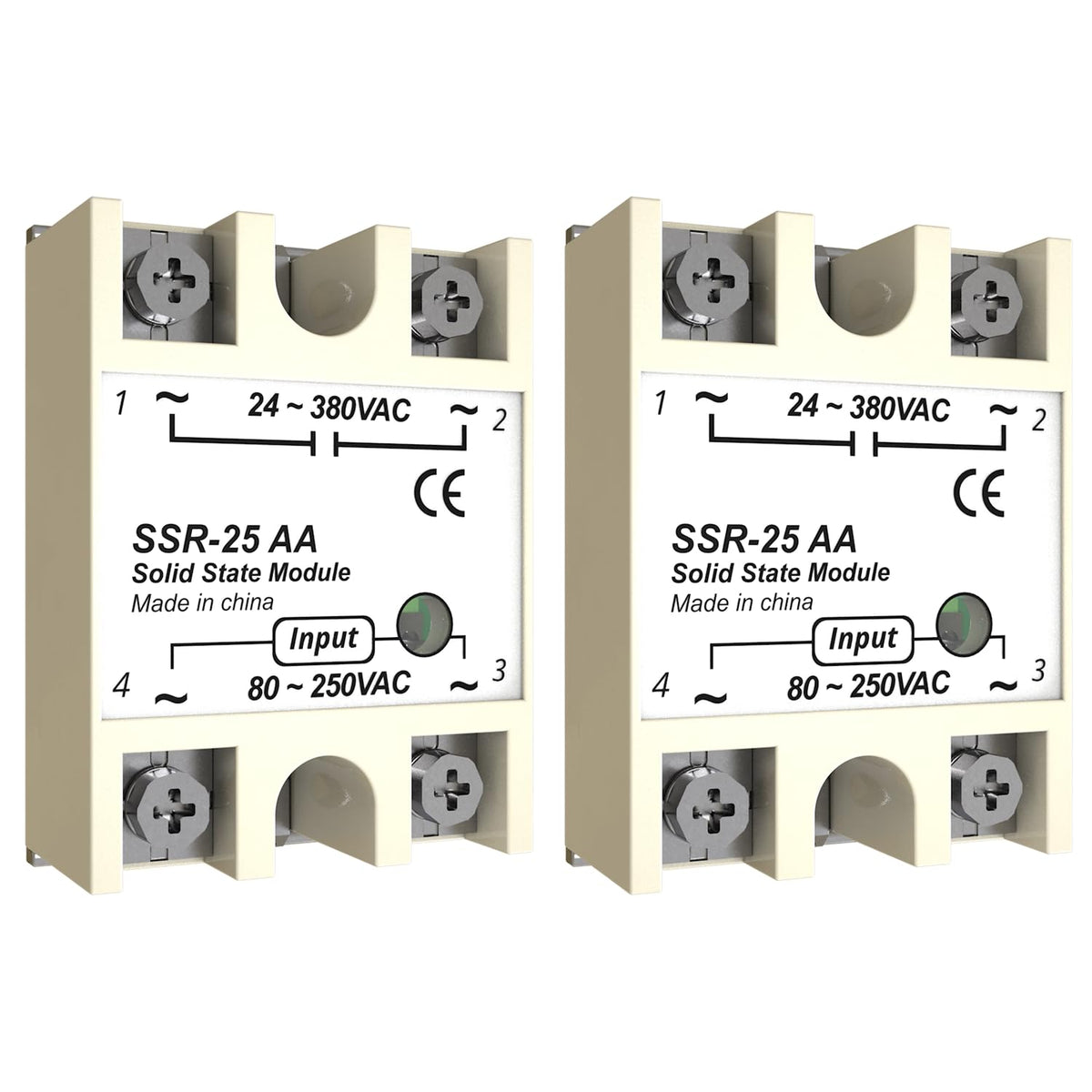

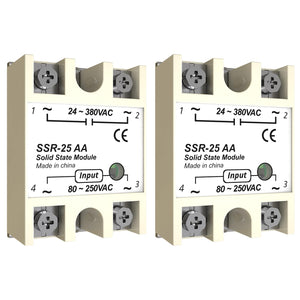

| 25A-AA | 2-Pack | AC control / AC output | SSR-YM-25AA-2 |

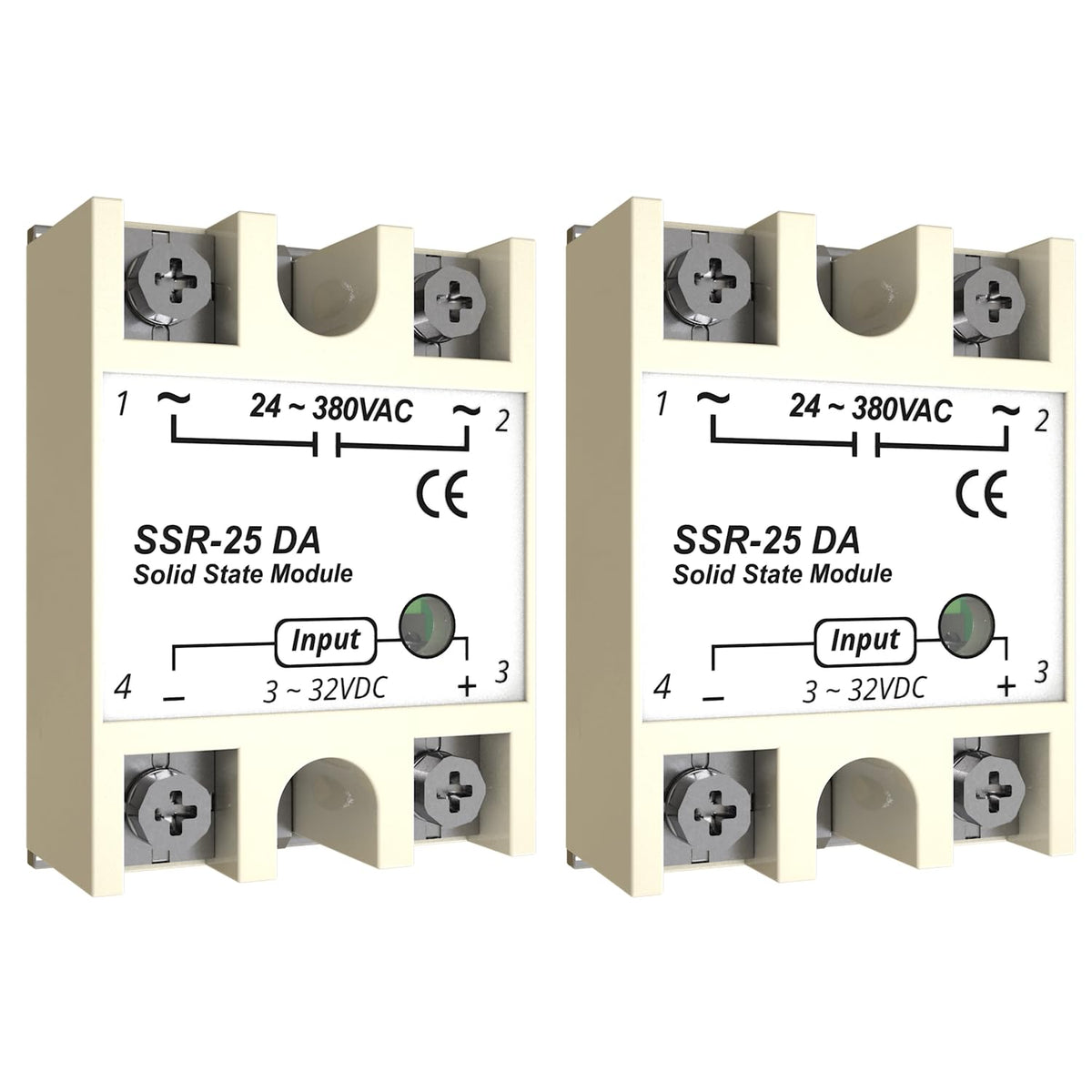

| 25A-DA | 2-Pack | DC control / AC output | SSR-YM-25DA-2 |
| 25A-DA | 3-Pack | DC control / AC output | SSR-YM-25DA-3 |

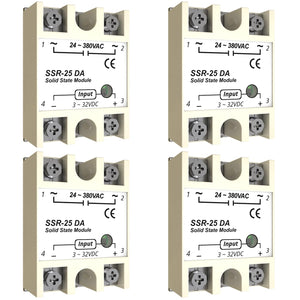

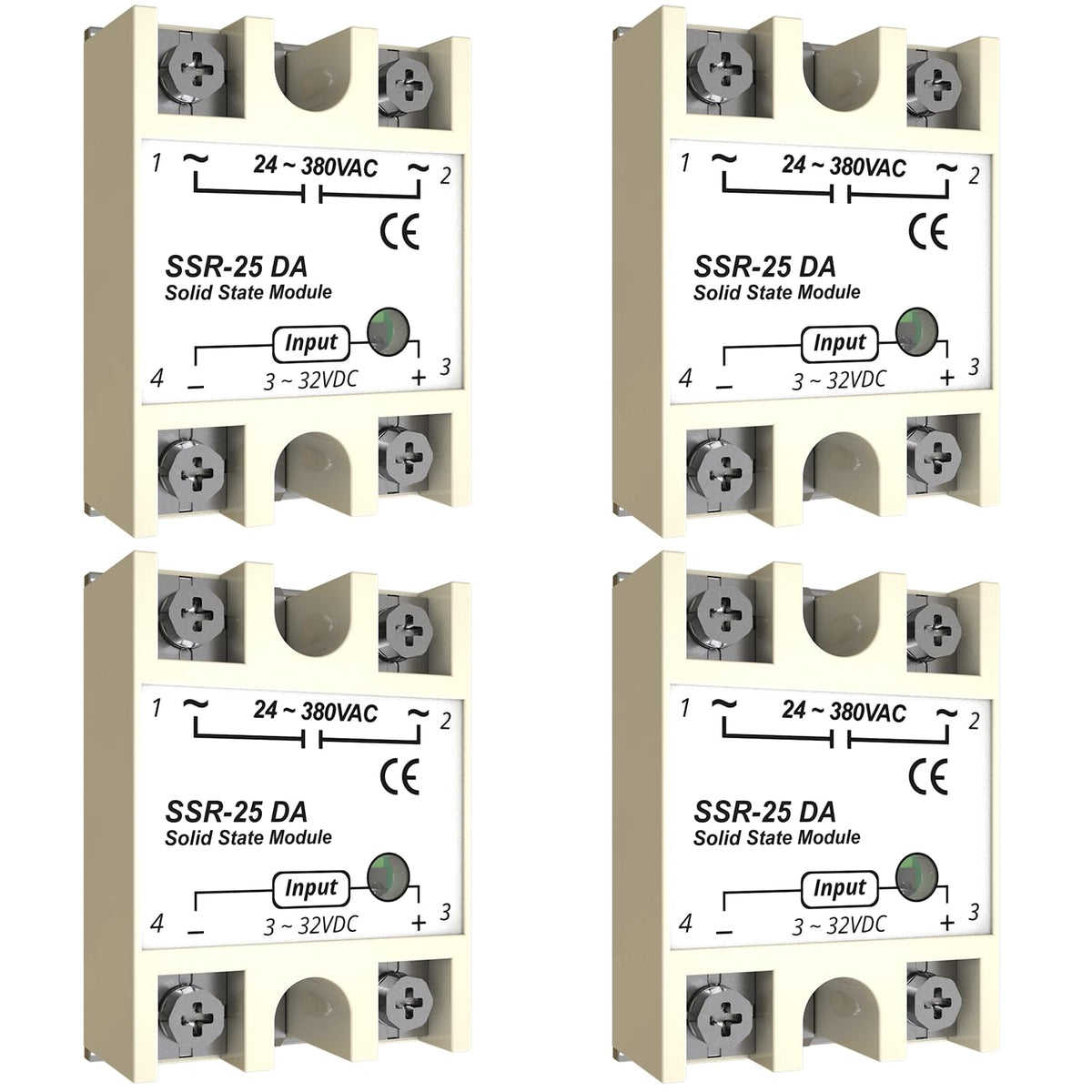

| 25A-DA | 4-Pack | DC control / AC output | SSR-YM-25DA-4 |

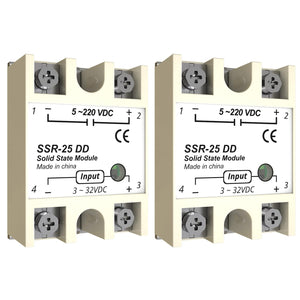

| 25A-DD | 2-Pack | DC control / DC output | SSR-YM-25DD-2 |

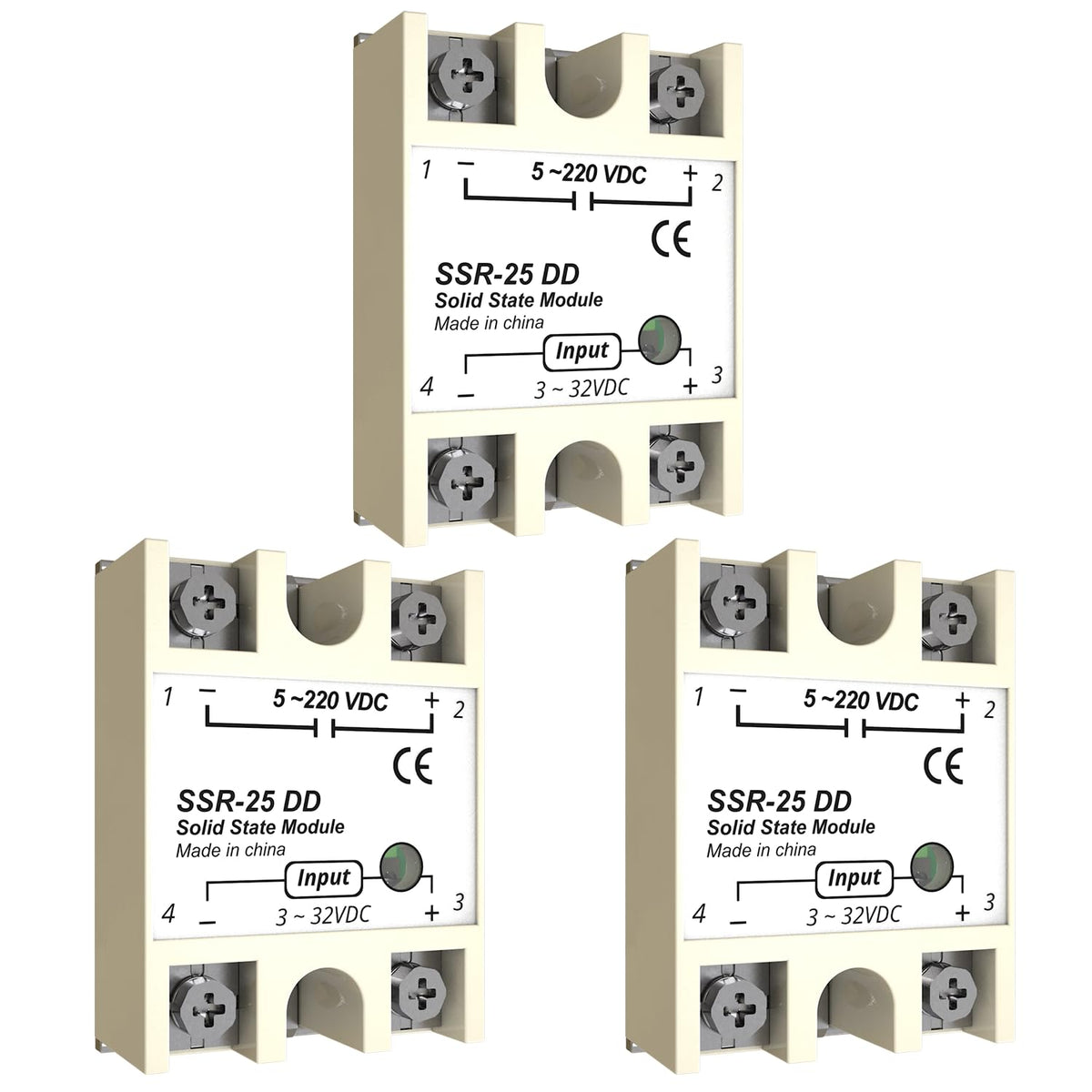

| 25A-DD | 3-Pack | DC control / DC output | SSR-YM-25DD-3 |

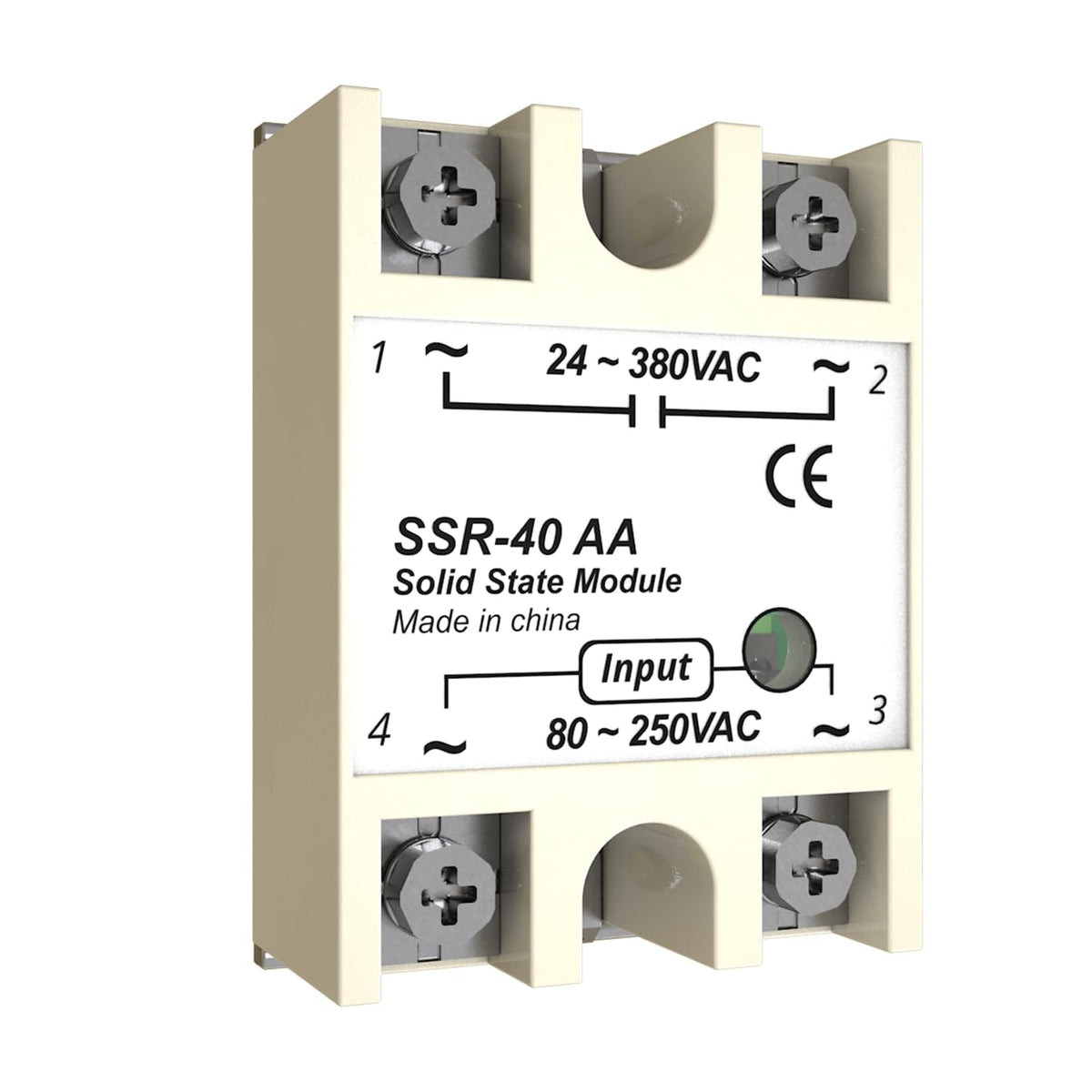

| 40A-AA | 1-Pack | AC control / AC output | SSR-YM-40AA-1 |

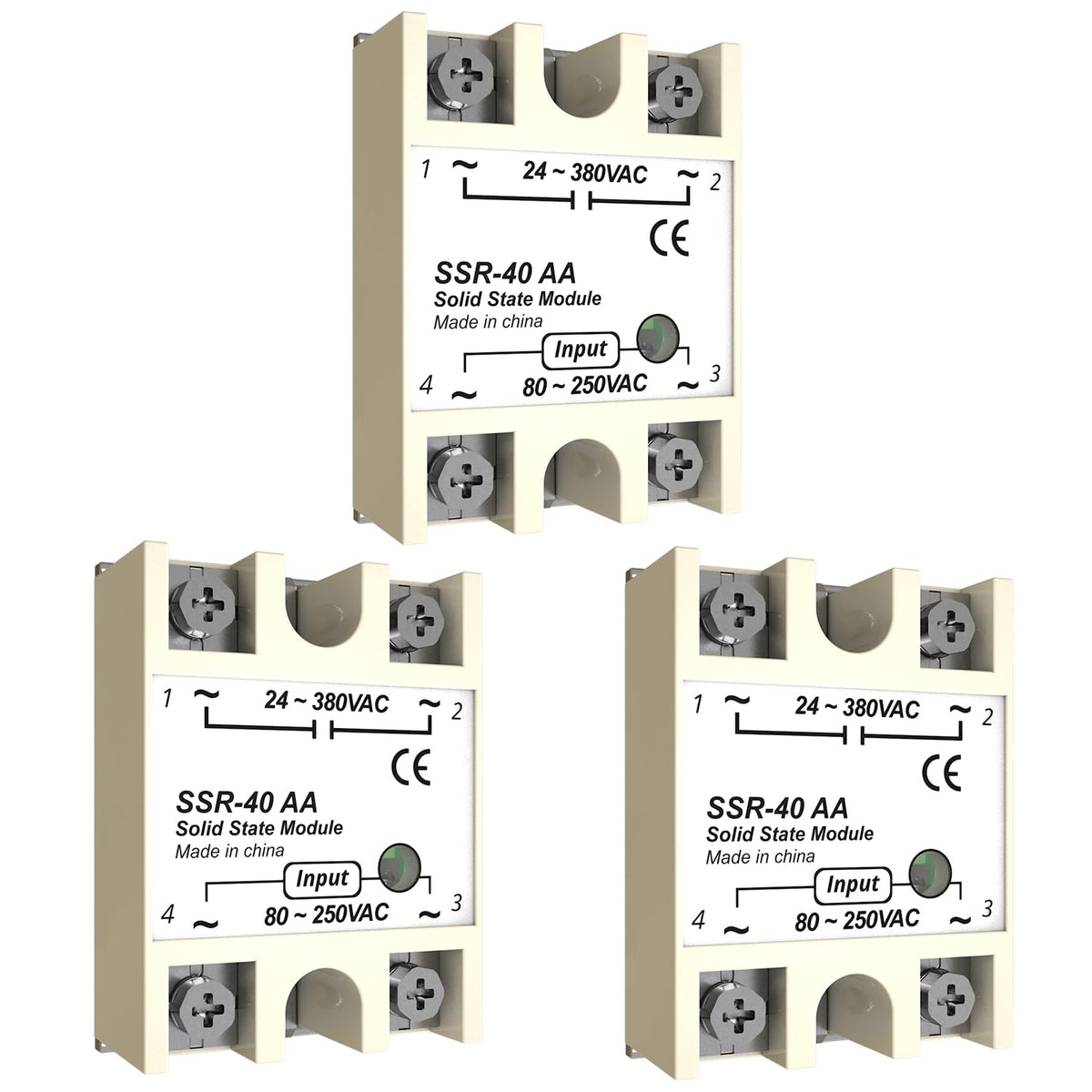

| 40A-AA | 3-Pack | AC control / AC output | SSR-YM-40AA-3 |

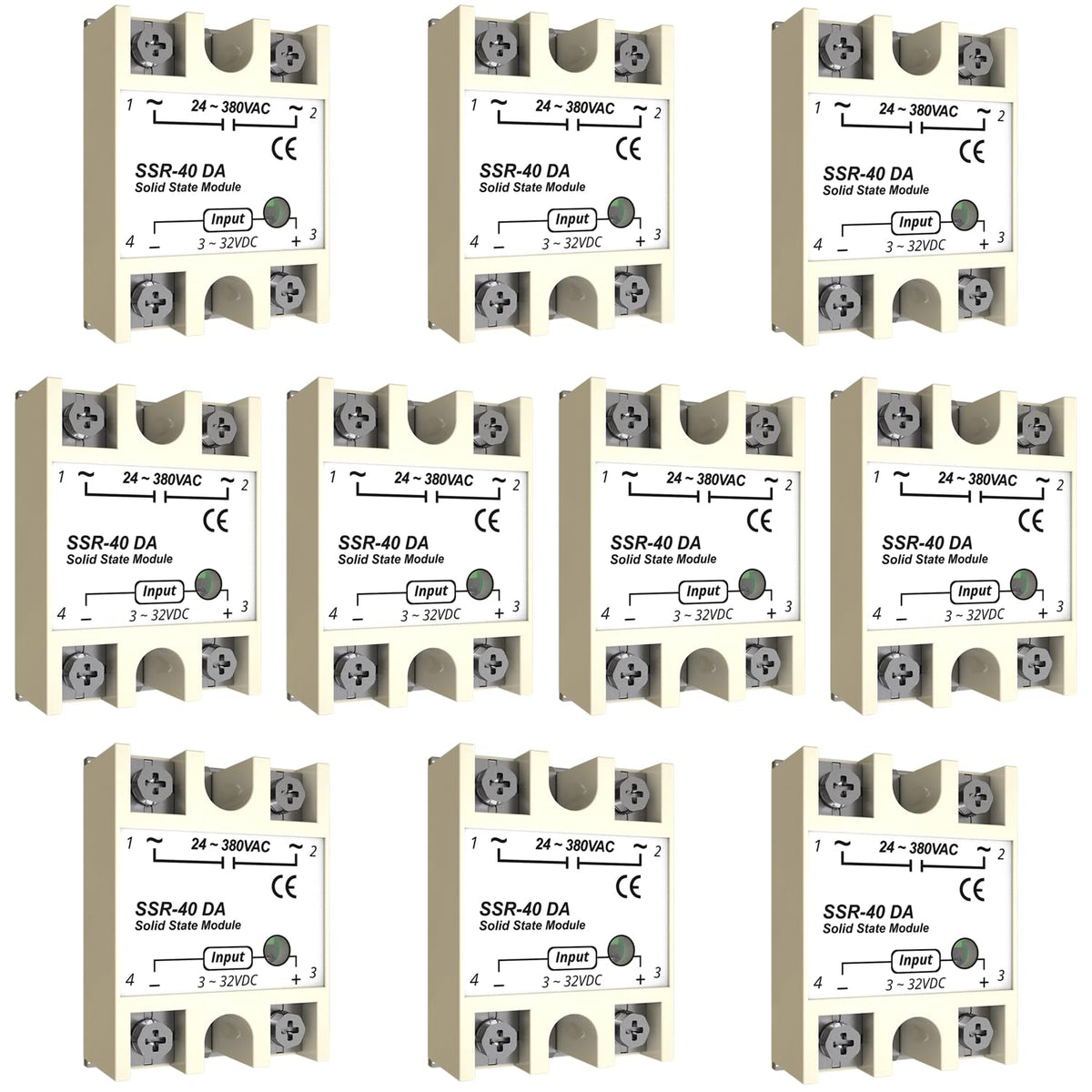

| 40A-DA | 10-Pack | DC control / AC output | SSR-YM-40DA-10 |

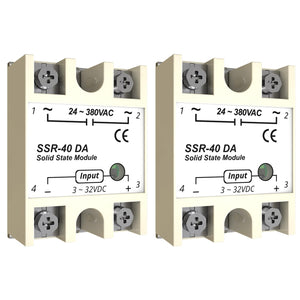

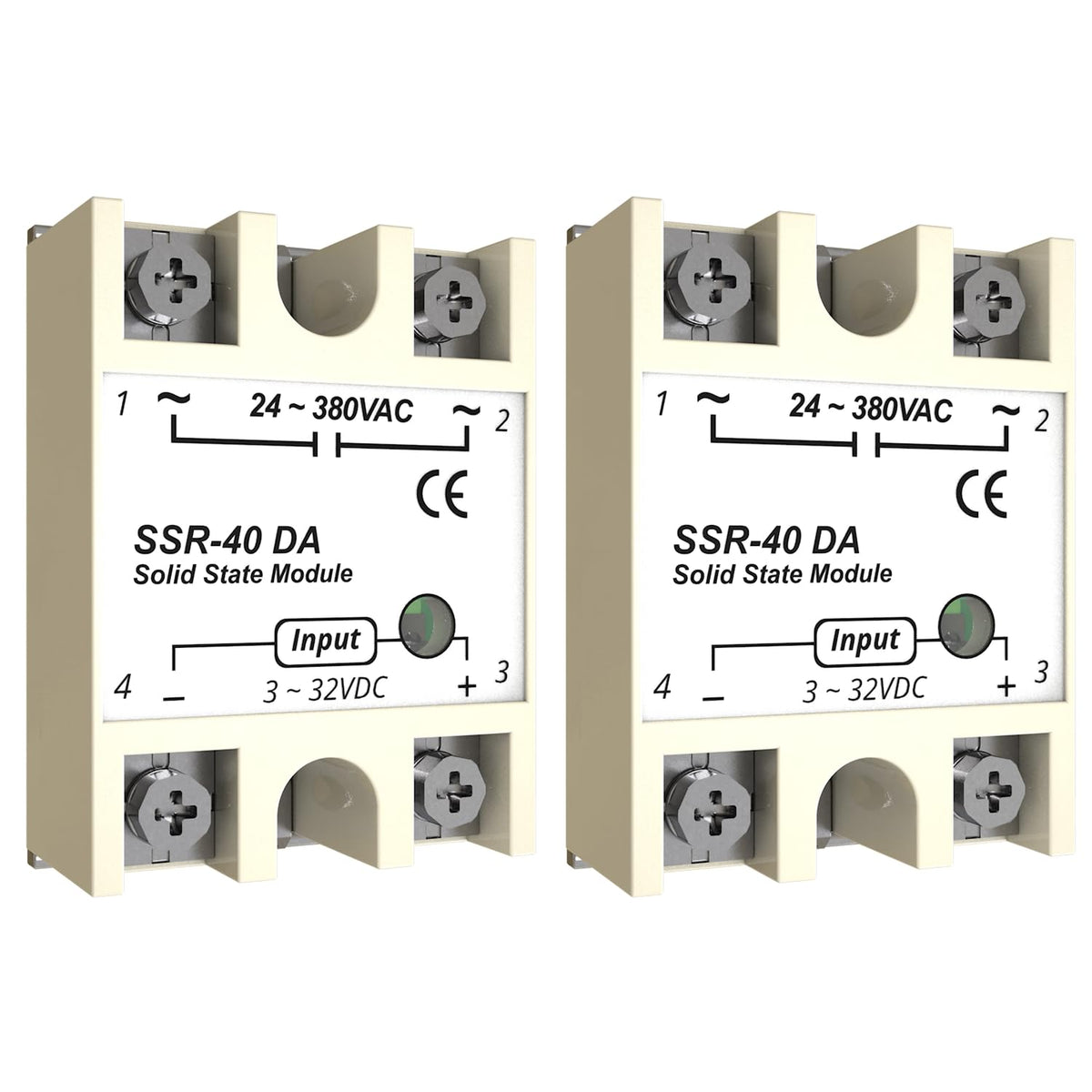

| 40A-DA | 2-Pack | DC control / AC output | SSR-YM-40DA-2 |

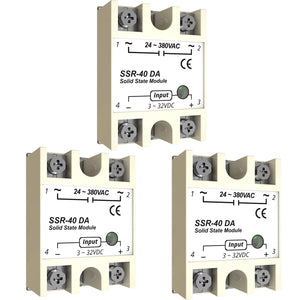

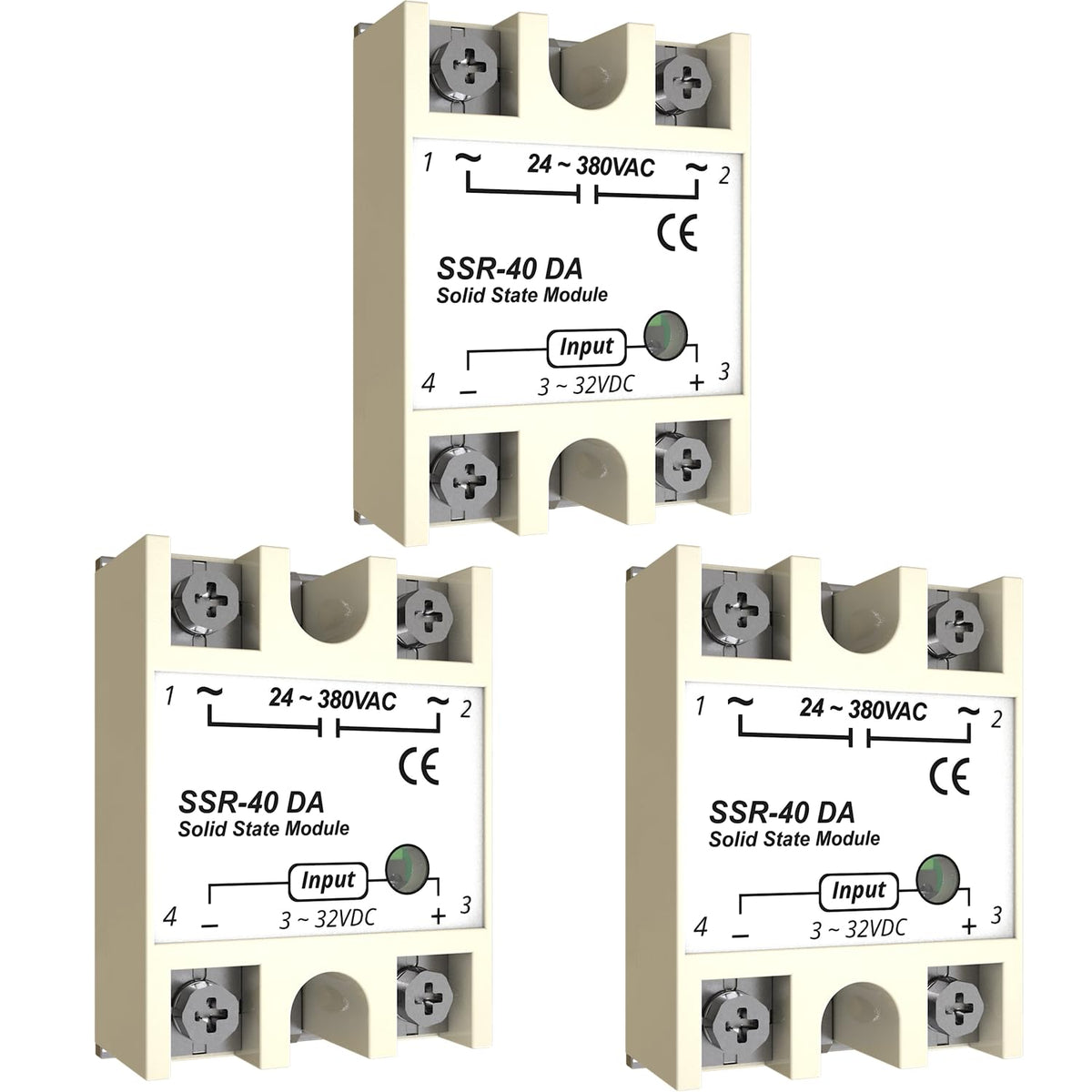

| 40A-DA | 3-Pack | DC control / AC output | SSR-YM-40DA-3 |

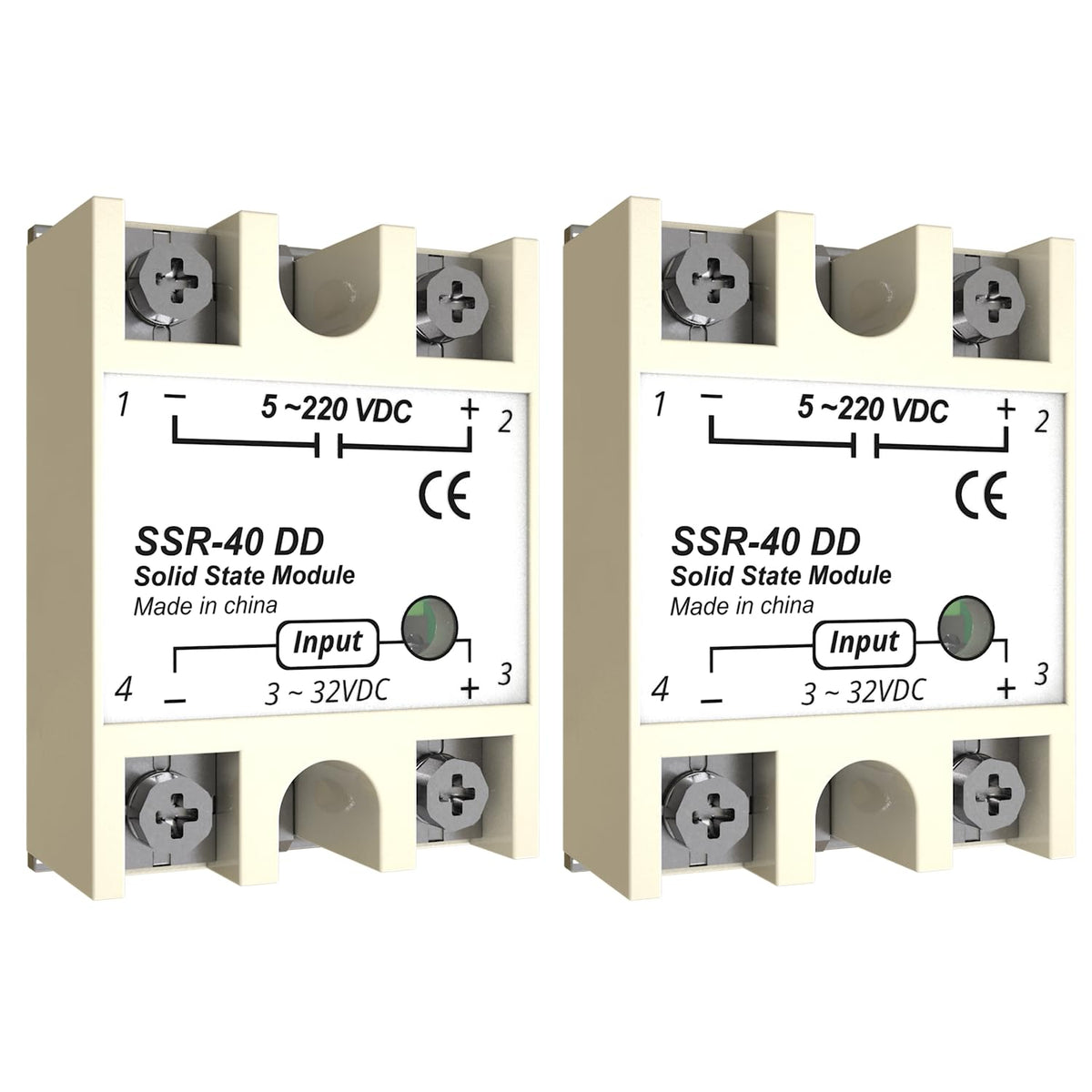

| 40A-DD | 2-Pack | DC control / DC output | SSR-YM-40DD-2 |

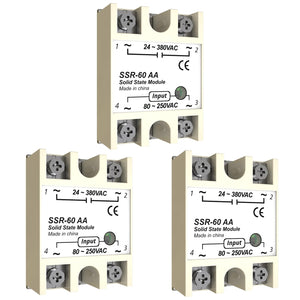

| 60A-AA | 3-Pack | AC control / AC output | SSR-YM-60AA-3 |

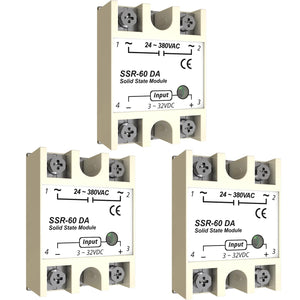

| 60A-DA | 3-Pack | DC control / AC output | SSR-YM-60DA-3 |

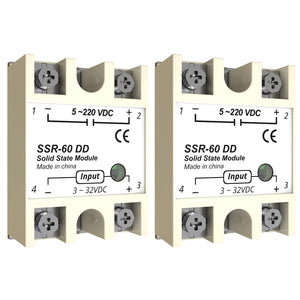

| 60A-DD | 2-Pack | DC control / DC output | SSR-YM-60DD-2 |
25A-AA dimensional reference
Installation and selection notes
- Disconnect and verify isolation of all power before wiring.
- Use the complete model code and the terminal diagram printed on the selected relay.
- Do not transfer voltage, current or wiring details from a different YM model.
- Provide thermal management appropriate to the actual load and enclosure conditions.
- Installation and load calculations should be completed by qualified personnel.
FAQ
Does a larger pack change the relay model?
No. The model code defines the relay configuration; pack size only defines the number of relay modules supplied.
Is a heat sink included?
A heat sink is not listed as part of these relay packs. Select accessories separately after confirming mechanical and thermal requirements.
| Model |
25A-AA, 25A-DA, 25A-DD, 40A-AA, 40A-DA, 40A-DD, 60A-AA, 60A-DA, 60A-DD |
|---|---|
| Pack Size |
2-Pack, 3-Pack, 4-Pack, 1-Pack, 10-Pack |
