MAKERELE XD3420 DC Motors
XD3420 Permanent-Magnet DC Motors
The MAKERELE XD3420 series is a 30 W permanent-magnet DC motor family with conventional, short and threaded shaft styles. Each style is offered for 12 V or 24 V systems with 3,500 or 7,000 RPM source references. Choose the exact shaft and electrical option required by the assembly.
Key Features
- Three shaft styles: conventional, short and threaded variants.
- Voltage choices: 12 V and 24 V DC references.
- Speed choices: 3,500 RPM and 7,000 RPM references.
- Reversible rotation: CW/CCW operation by correct DC polarity and system control.
- Installation support: source listing includes a connector and mounting hardware reference.
Variant Guide
| Shaft style | SKU | Power | Voltage / speed references |
|---|---|---|---|

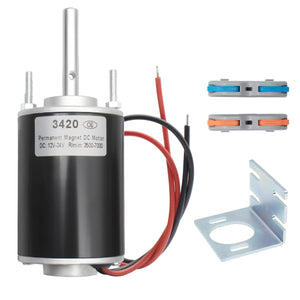

| Conventional shaft | MK-DCM-XD3420-CZ | 30 W | 12/24 V; 3,500/7,000 RPM |

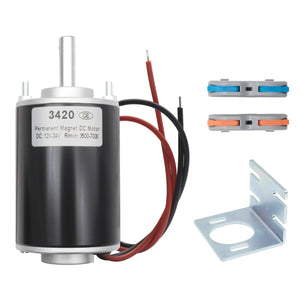

| Short shaft | MK-DCM-XD3420-DZ | 30 W | 12/24 V; 3,500/7,000 RPM |

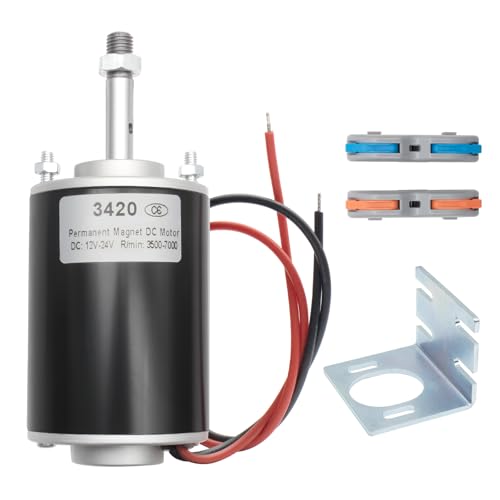

| Threaded shaft | MK-DCM-XD3420-LW | 30 W | 12/24 V; 3,500/7,000 RPM |
Selection and Use
Confirm the selected shaft geometry, mounting interface, supply voltage and target speed before ordering. Do not infer load torque from the no-load speed reference. Size the power supply and control components for the motor's real operating and start-up current, and provide mechanical guarding and heat management appropriate to the application.
FAQ
Can the shaft styles be substituted directly?
Not necessarily. The mating part, usable shaft length and fastening method must match the selected style.
Is this a stepper motor?
No. It is a permanent-magnet brushed DC motor and requires a compatible DC supply or speed controller.
| Shaft Style |
Conventional Shaft, Short Shaft, Threaded Shaft |
|---|
