Is the kit really IP68 waterproof?

Yes. When tightened to 3 Nm the gland passes IP68 (5-bar, 30 min) water-pressure tests.

Does it carry an official UL listing?

All PA66 parts meet UL-94 V-2 flammability and the assembly is UL-listed for conduit fittings.

What cable diameter range is supported?

¼″ (4-8 mm), ⅜″ (5-10 mm), ½″ (6-12 mm), ¾″ (10-18 mm) and 1″ (17-24 mm).

Can I reuse the glands?

Yes—nylon threads and EPDM seals allow 3-4 re-installs without degrading the waterproof rating.

Outdoor UV resistance?

UV-stabilised PA66 keeps tensile strength >70 % after 1000 h xenon-arc exposure.

IP68 NPT Cable Glands and Strain Relief Connectors

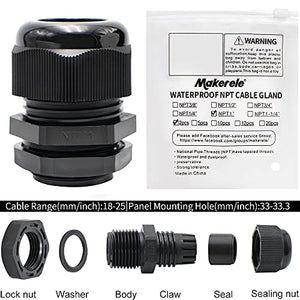

MAKERELE IP68 NPT Cable Glands

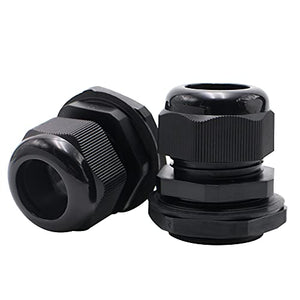

MAKERELE IP68 NPT cable glands provide waterproof cable entry and strain relief for outdoor electrical boxes, junction boxes, control cabinets, panels, and enclosures.

Key Features

Designed for waterproof cable entry and strain relief in electrical enclosures.
NPT thread options for common enclosure and junction box applications.
Black and grey PA66 nylon options plus selected nickel-plated brass options.
Single-size packs and mixed kits are available for maintenance, installation, and project use.

Variant Structure

Type	Options	Example SKUs

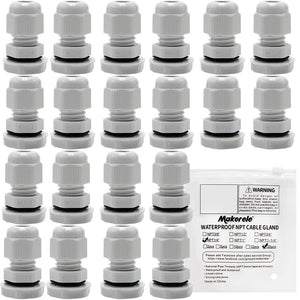

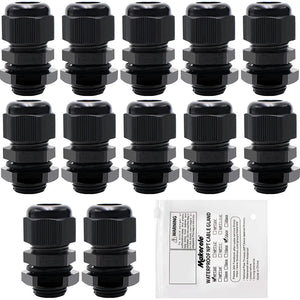

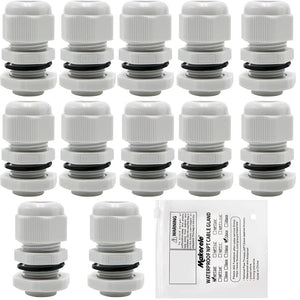

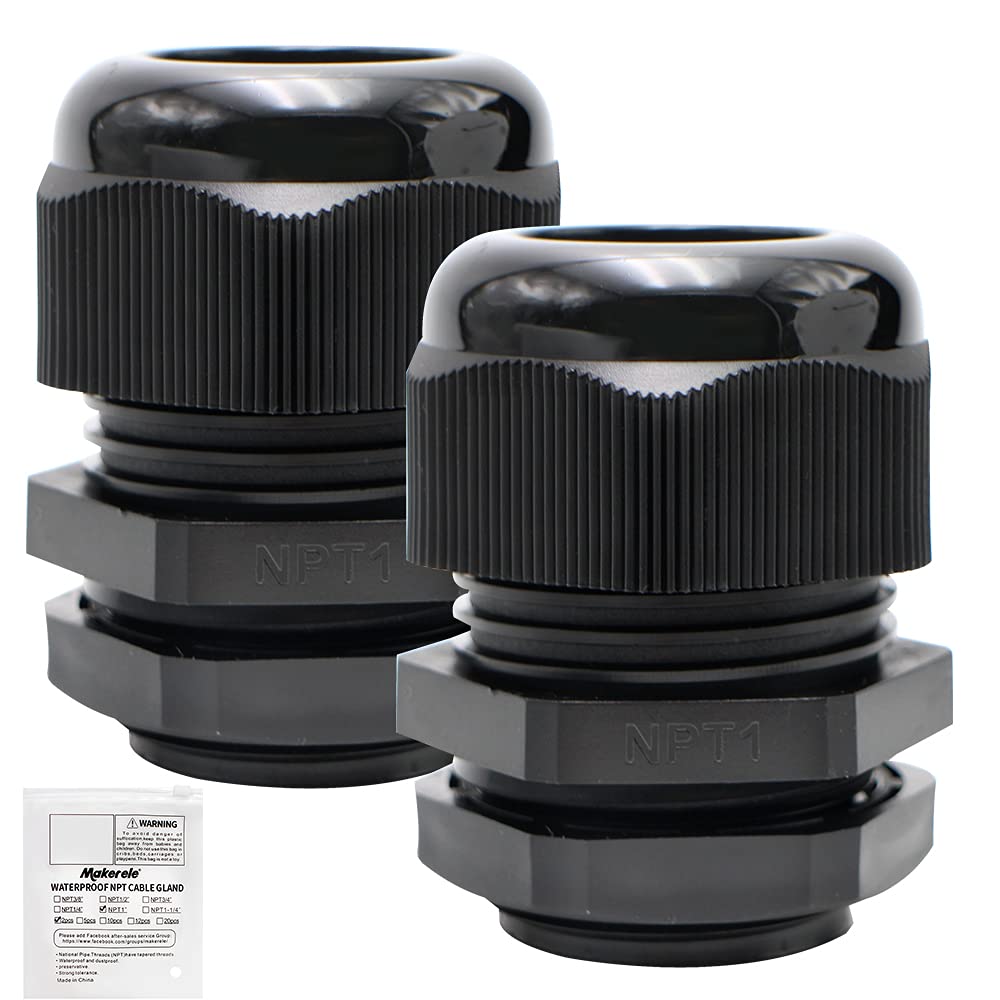

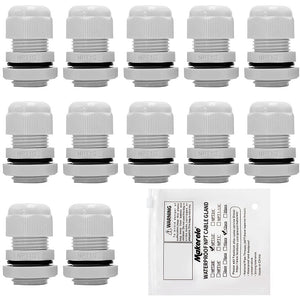

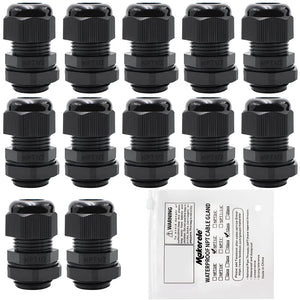

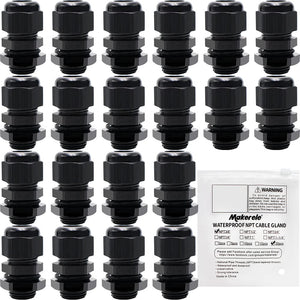

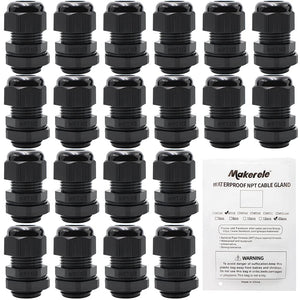

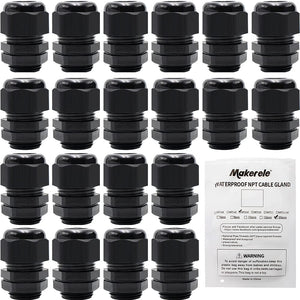

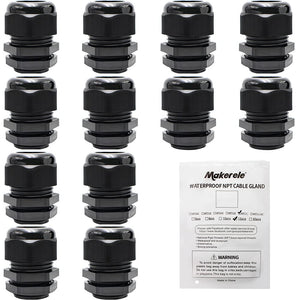

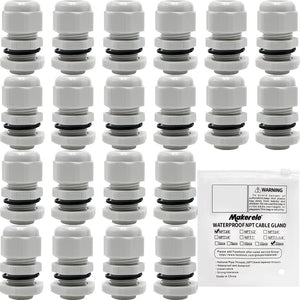

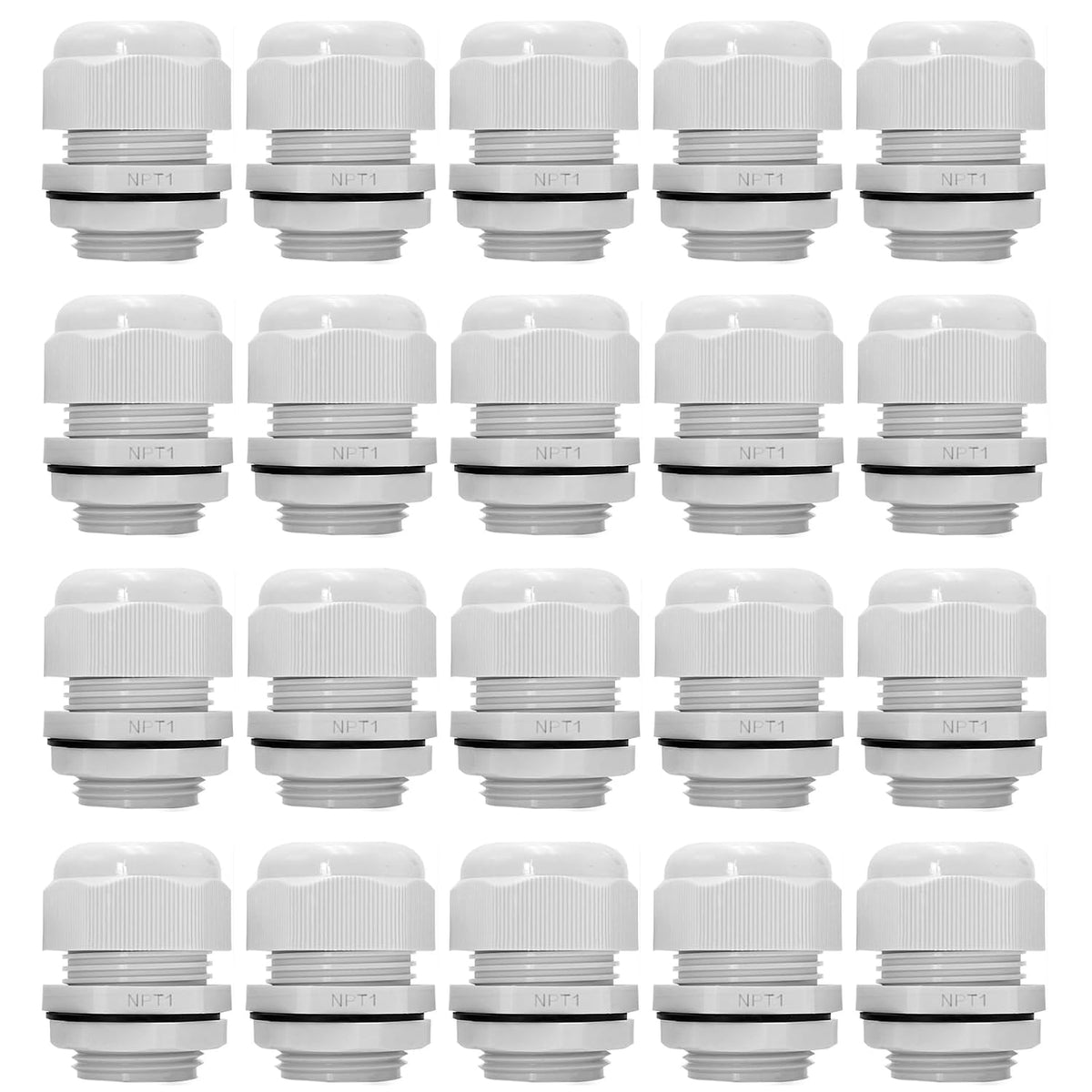

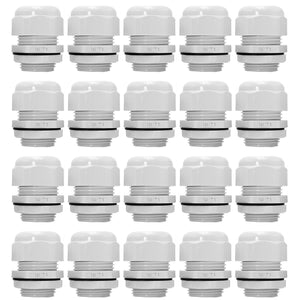

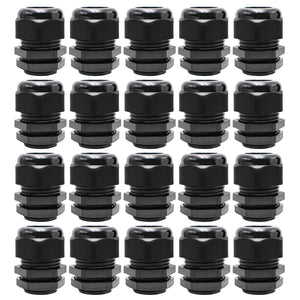

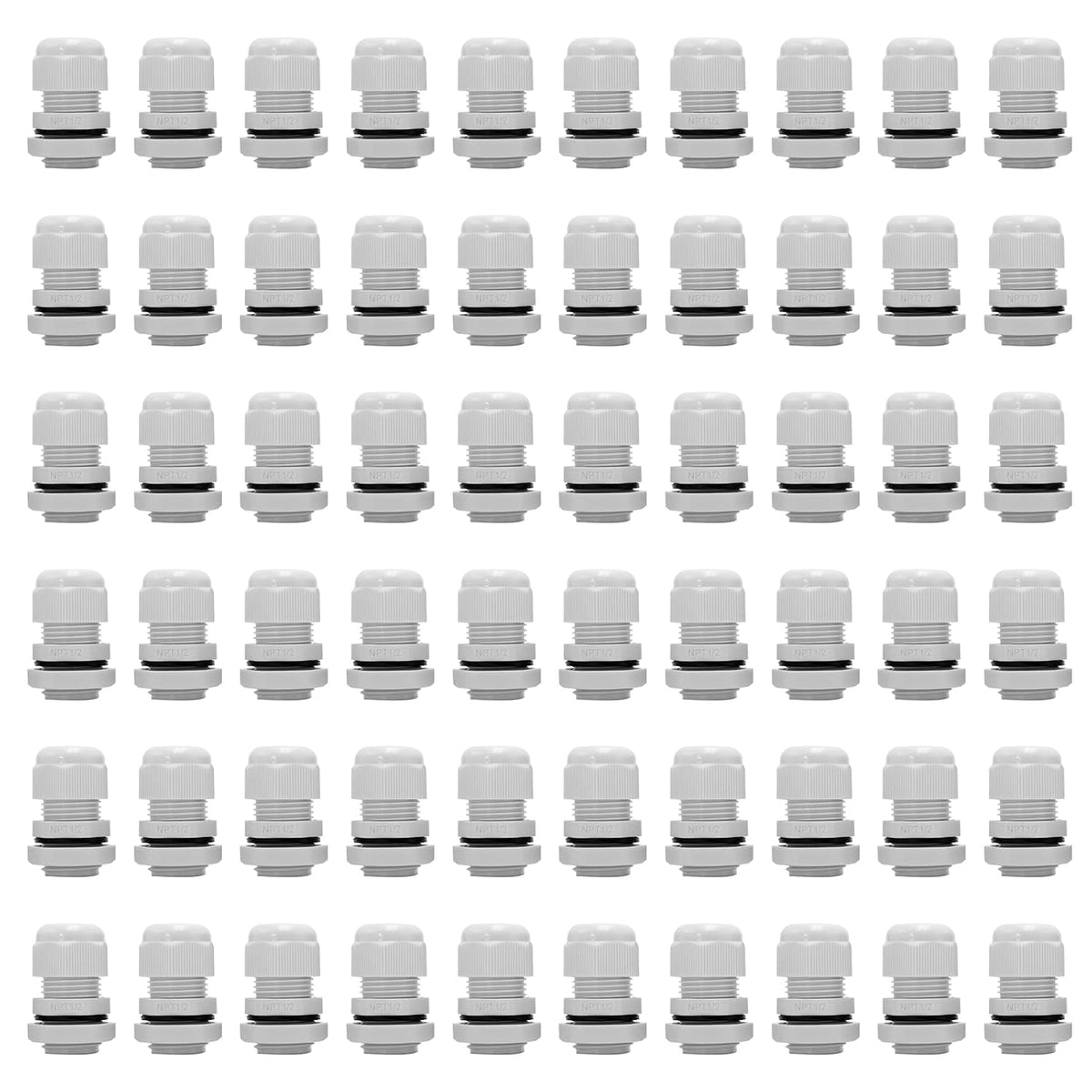

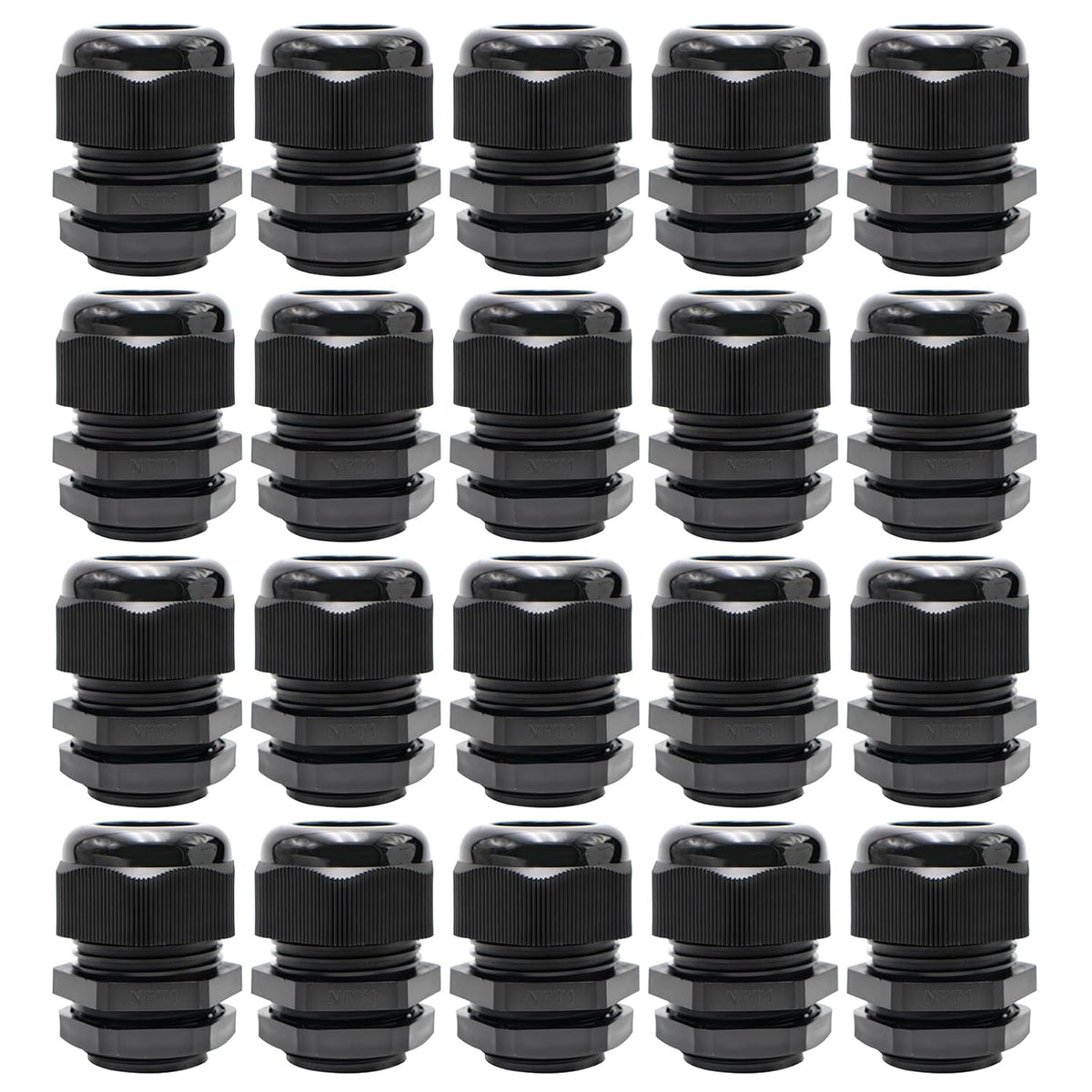

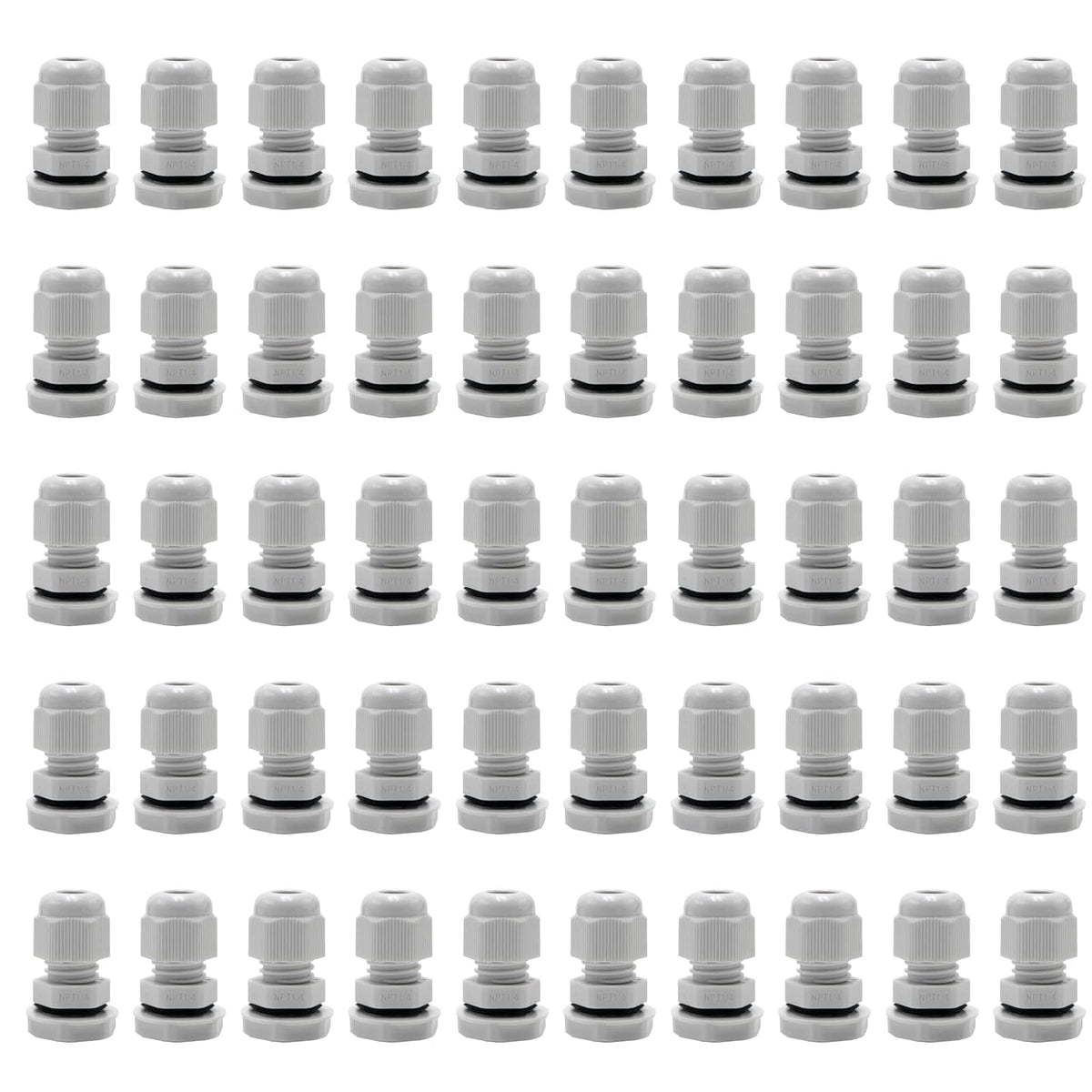

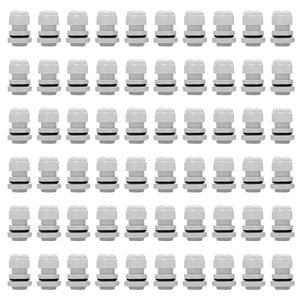

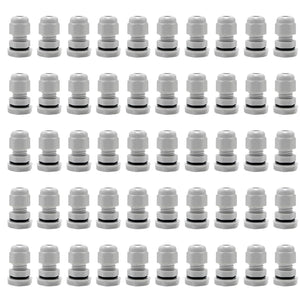

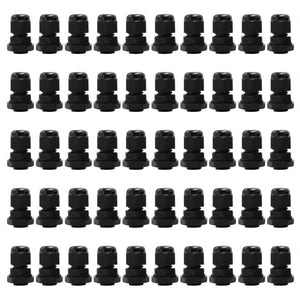

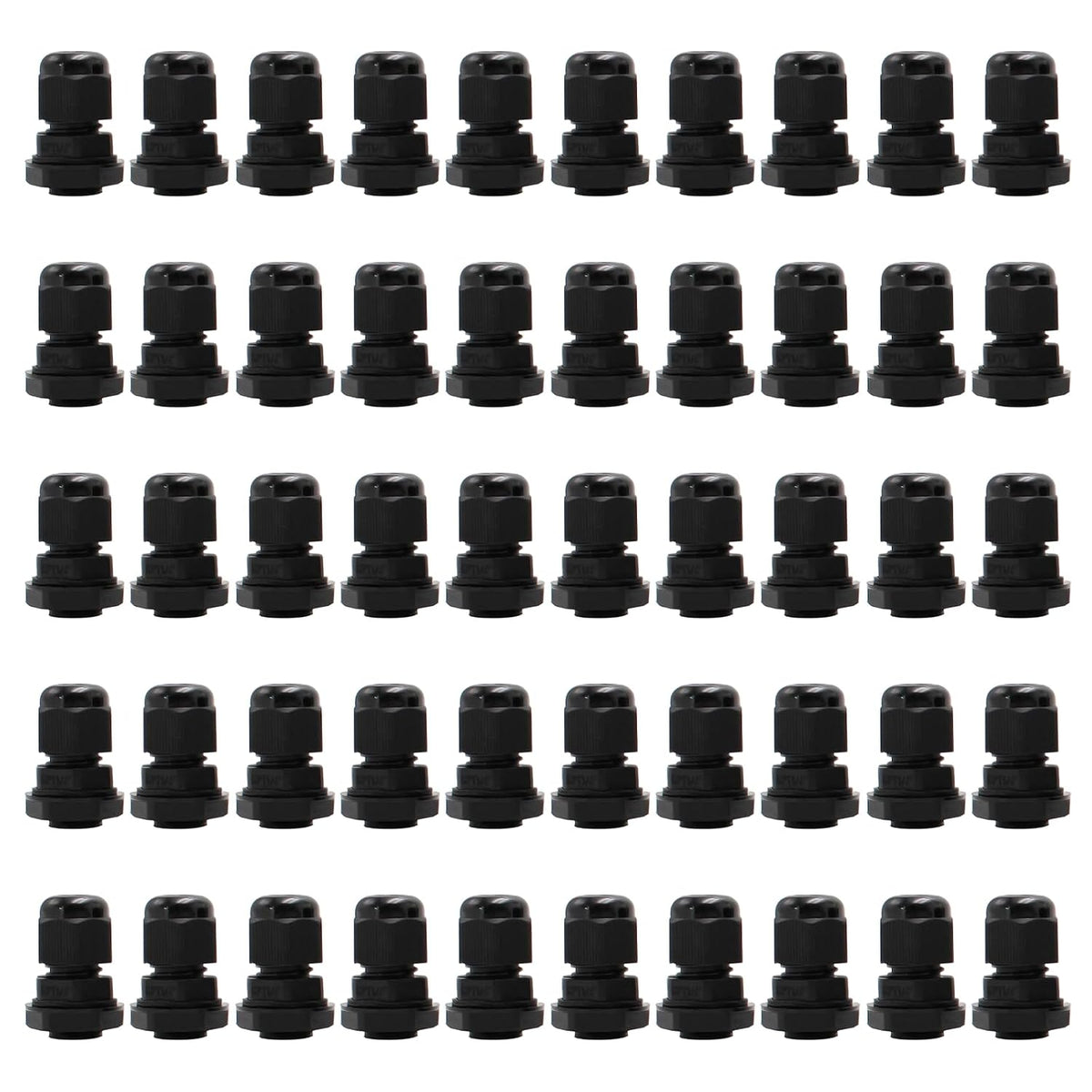

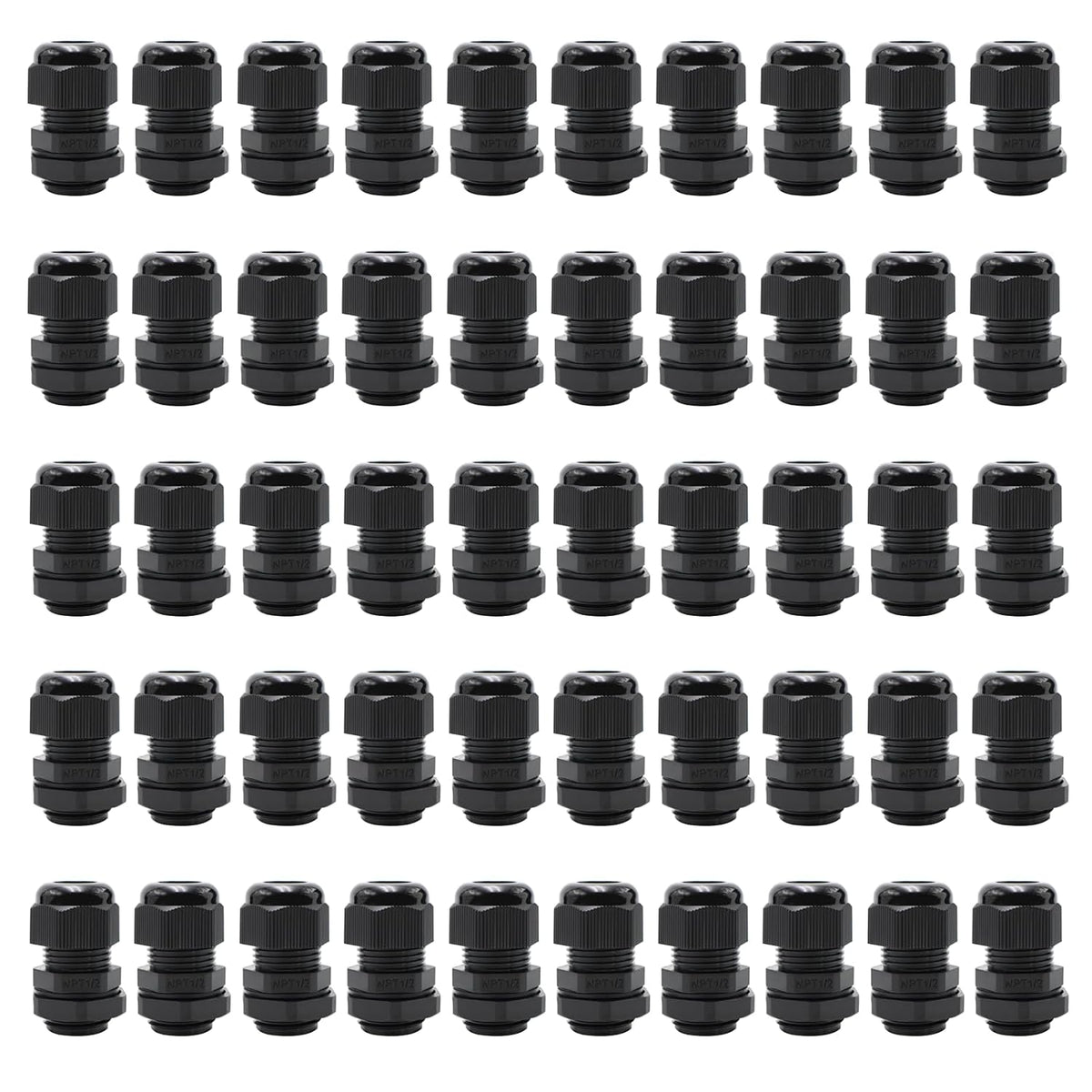

Nylon single-size packs	1/4 in, 3/8 in, 1/2 in, 3/4 in, 1 in; selected sizes available in 12-, 20-, or 50-piece packs	NPT 1/2(20PCS)BAG-B, MK-NPT 3/8(50PCS)BAG-B

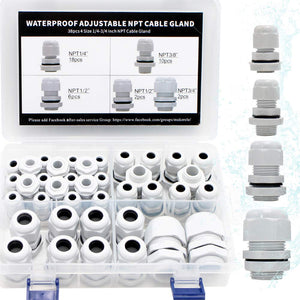

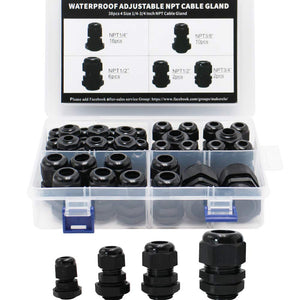

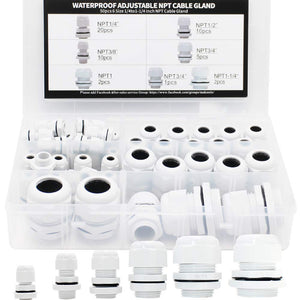

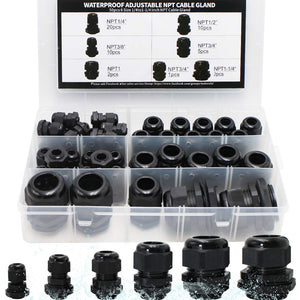

Mixed nylon kits	38pcs and 50pcs kit boxes	NPT(38)Box4A-B, NPT(50)Box6A-B

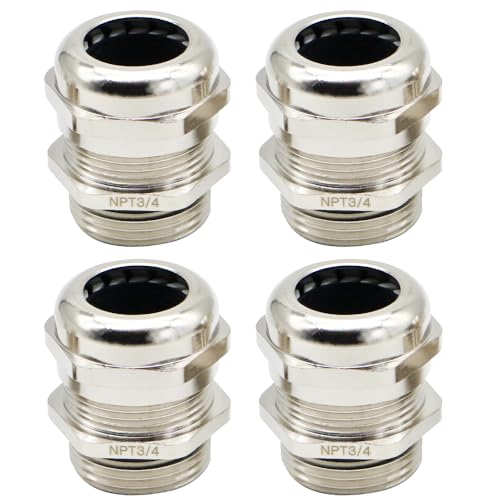

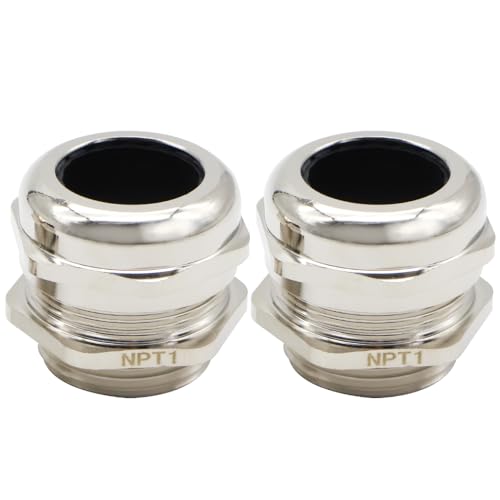

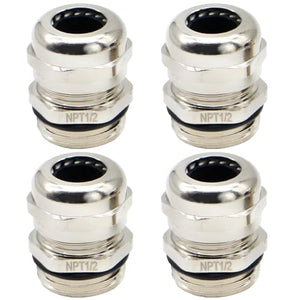

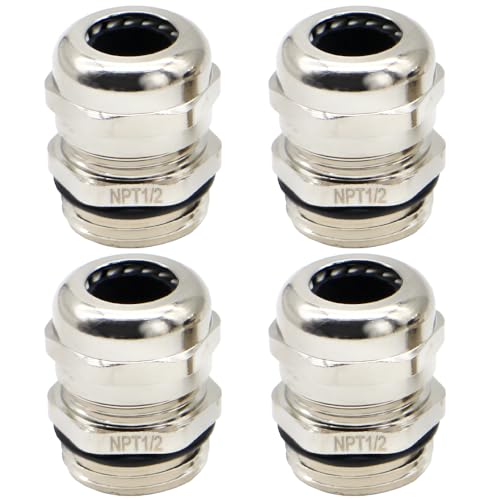

Nickel-plated brass	NPT 1/2 in, 4pcs, 6-12mm cable OD; NPT 3/4 in, 4pcs, 13-18mm cable OD; NPT 1 in, 2pcs, 18-25mm cable OD	NPT-1/2-BRASS-4PCS-BAG, NPT-3/4-BRASS-4PCS-BAG, NPT-1-BRASS-2PCS-BAG

Typical Applications

Use these cable glands for waterproof junction boxes, solar combiner boxes, outdoor lighting, control cabinets, RV wiring, marine wiring, CCTV equipment, and other enclosure cable-entry projects.

FAQ

Are NPT and PG cable glands interchangeable?
No. NPT and PG use different thread standards. Match the gland to the enclosure thread and confirm the cable outside diameter before ordering.

How should I choose the correct size?
Check both the enclosure thread opening and the cable outside diameter. The gland clamping range must cover the cable diameter.

When should I choose nickel-plated brass?
Choose a brass variant when the project needs a metal gland body with durable strain relief. Confirm the NPT thread, cable clamping range, and pack quantity shown in the selected variant.

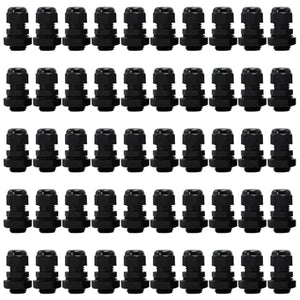

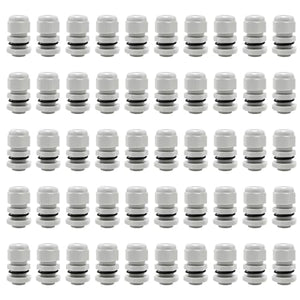

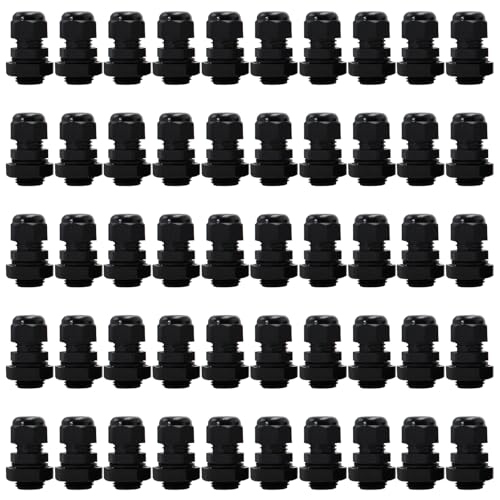

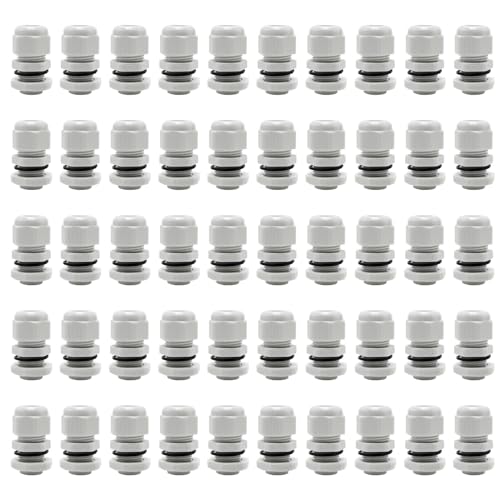

Is the 3/8-inch 50-Pack a mixed kit?
No. The 3/8-inch 50-Pack contains one NPT thread size in either black or grey. Variants labeled KIT BOX are mixed-size assortments.

Before Ordering

Confirm thread size, cable diameter range, material, color, pack quantity, and enclosure requirements before selecting a variant. Contact MAKERELE for bulk pricing or project sourcing.

Color	Black, Grey, Nickel-plated copper

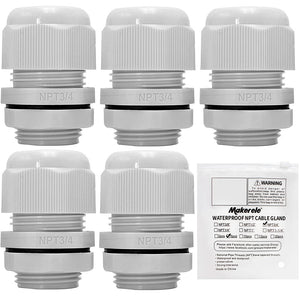

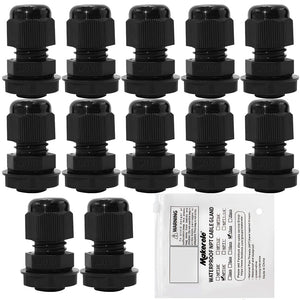

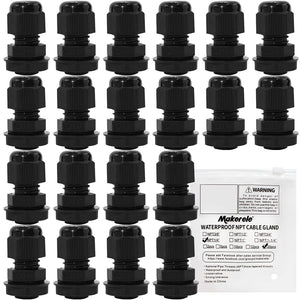

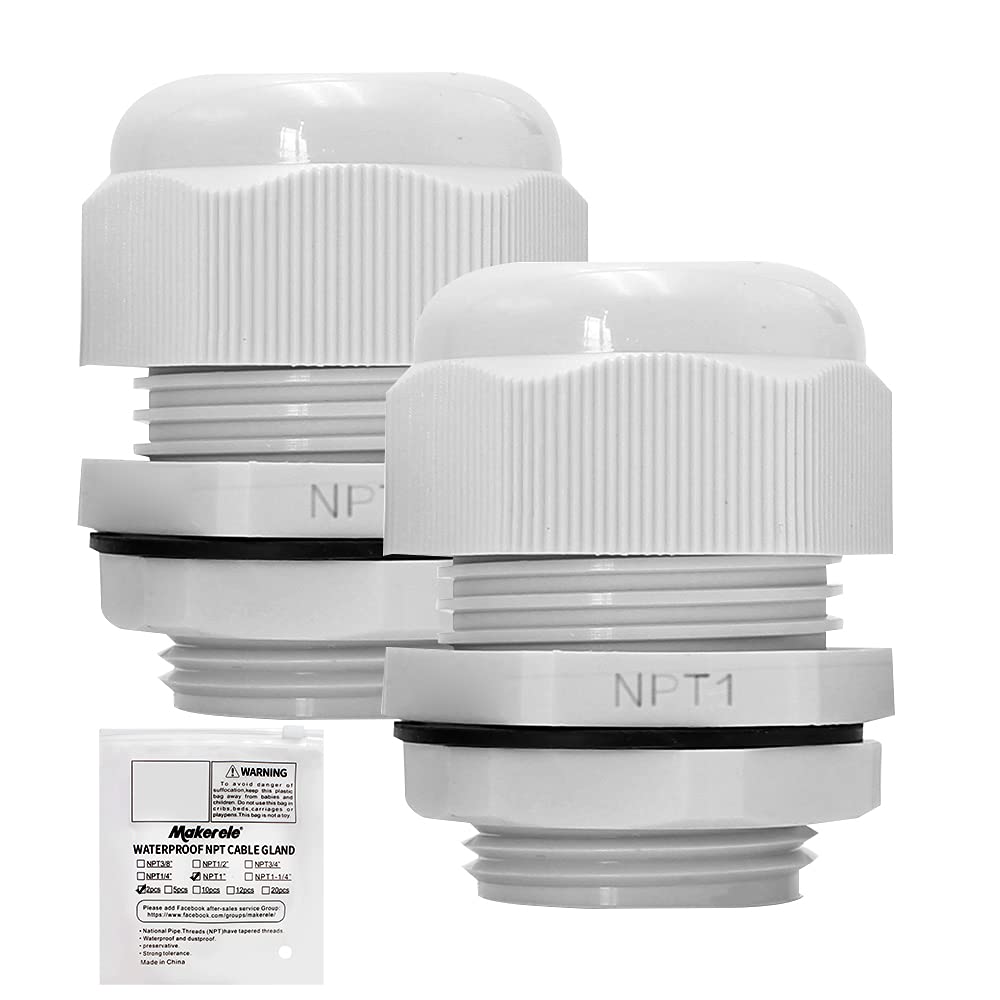

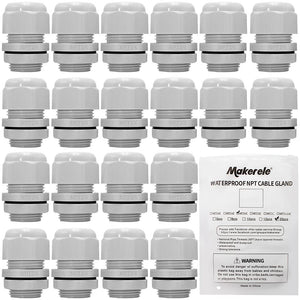

Size	1" 2pcs BAG, 1/2" 12pcs BAG, 1/2" 20pcs BAG, 1/4" 12pcs BAG, 1/4" 20pcs BAG, 1" 12pcs BAG, 3/4" 5pcs BAG, 3/4" 20pcs BAG, 3/8" 12pcs BAG, 3/8" 20pcs BAG, 38pcs KIT BOX, 50pcs KIT BOX, 3/8" 50pcs BAG, 1/2" 4pcs BAG, 3/4" 4pcs BAG
