MAKERELE IP67 Outside Electrical Box with NPT Cable Glands
Seal your outdoor electronics once and forget them. Makerele’s grey ABS project box is IP67-rated, ships with two ¼″ NPT glands, and survives 0 °C → 80 °C swings without cracking. Compact 95 × 65 × 55 mm housing slips behind fixtures yet gives enough depth for relays, micro-controllers or power splices. Drill, mount and relax—your gear stays dry, dust-free and code-compliant.
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
MAKERELE IP67 Outside Electrical Box with NPT Cable Glands
IP67 Outdoor Electrical Boxes with Size-Matched NPT Cable Glands
The MAKERELE M3 series provides six enclosure sizes for outdoor wiring and compact electrical or electronics projects. Each current SKU is paired with two NPT cable glands sized for that enclosure.
Key selection points
- Six current enclosure sizes range from 3.74 × 2.56 × 2.17 in. to 11.02 × 7.48 × 5.12 in.

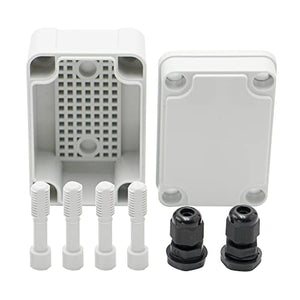

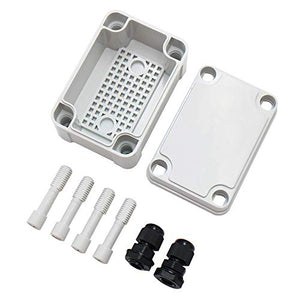

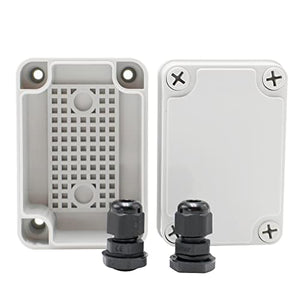

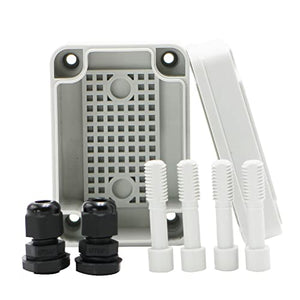

- The exact product images show the enclosure body, removable cover, internal mounting area, cover screws, and included cable glands.
- Each current source listing includes one enclosure and two NPT cable glands.
- The gland size changes by model; do not assume every enclosure uses 1/4 in. entries.
- Select the enclosure by internal equipment space, cable diameter, entry direction, and mounting requirements.
Current size and gland selection
| SKU | Shopify size option | Included gland size |
|---|---|---|

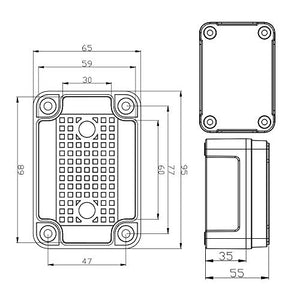

| M3box090605 | 3.74 × 2.56 × 2.17 in. | 2 × NPT 1/4 in. |
| M3box110808 | 4.33 × 3.15 × 3.35 in. | 2 × NPT 1/4 in. |
| M3box171710 | 6.89 × 6.89 × 3.94 in. | 2 × NPT 3/8 in. |

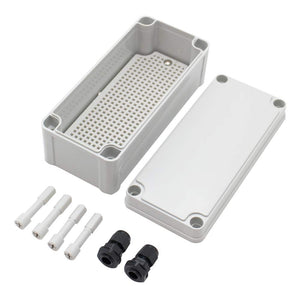

| M3box180807 | 7.08 × 3.15 × 2.76 in. | 2 × NPT 1/4 in. |

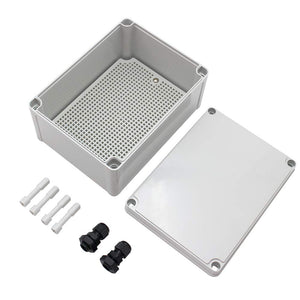

| M3box201510 | 7.87 × 5.90 × 3.94 in. | 2 × NPT 3/8 in. |

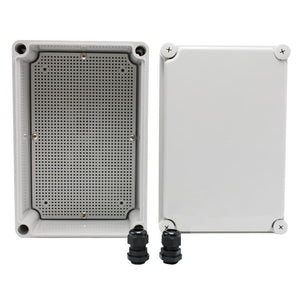

| M3box281913 | 11.02 × 7.48 × 5.12 in. | 2 × NPT 1/2 in. |
Installation boundary
Plan cable entries and mounting before drilling or installing components. Maintain the cover seal and cable-entry seals, follow applicable local electrical rules, and use a qualified installer where required. This page does not add unverified certification, temperature, flammability, impact-resistance, or service-life claims.
FAQ
Do all six sizes include the same NPT glands?
No. Use the table above; the current listings use 1/4 in., 3/8 in., or 1/2 in. glands depending on the SKU.
What is included in the current source listing?
One enclosure and two model-matched NPT cable glands are listed. Review the selected model image for the exact physical configuration.
Can this enclosure replace branch-circuit protection?
No. It is an enclosure. Select and install protective devices and wiring methods separately for the project.
| Size |
3.74”*2.56”*2.17”, 4.33”*3.15”*3.35”, 6.89”*6.89”*3.94”, 7.08”*3.15”*2.76”, 7.87”*5.90”*3.94”, 11.02”*7.48”*5.12” |
|---|
