MAKERELE IP68 Open Splice Boxes
Ultra-compact IP68 junction box for 5–15 mm cables; four-way terminal handles 450 V at 41 A from -40 °C to +85 °C. Screw-down grommets create a watertight, UV-resistant splice in under two minutes—perfect for buried lights, fountains, or street-lamp retrofits, at a price that beats most Amazon alternatives.
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout

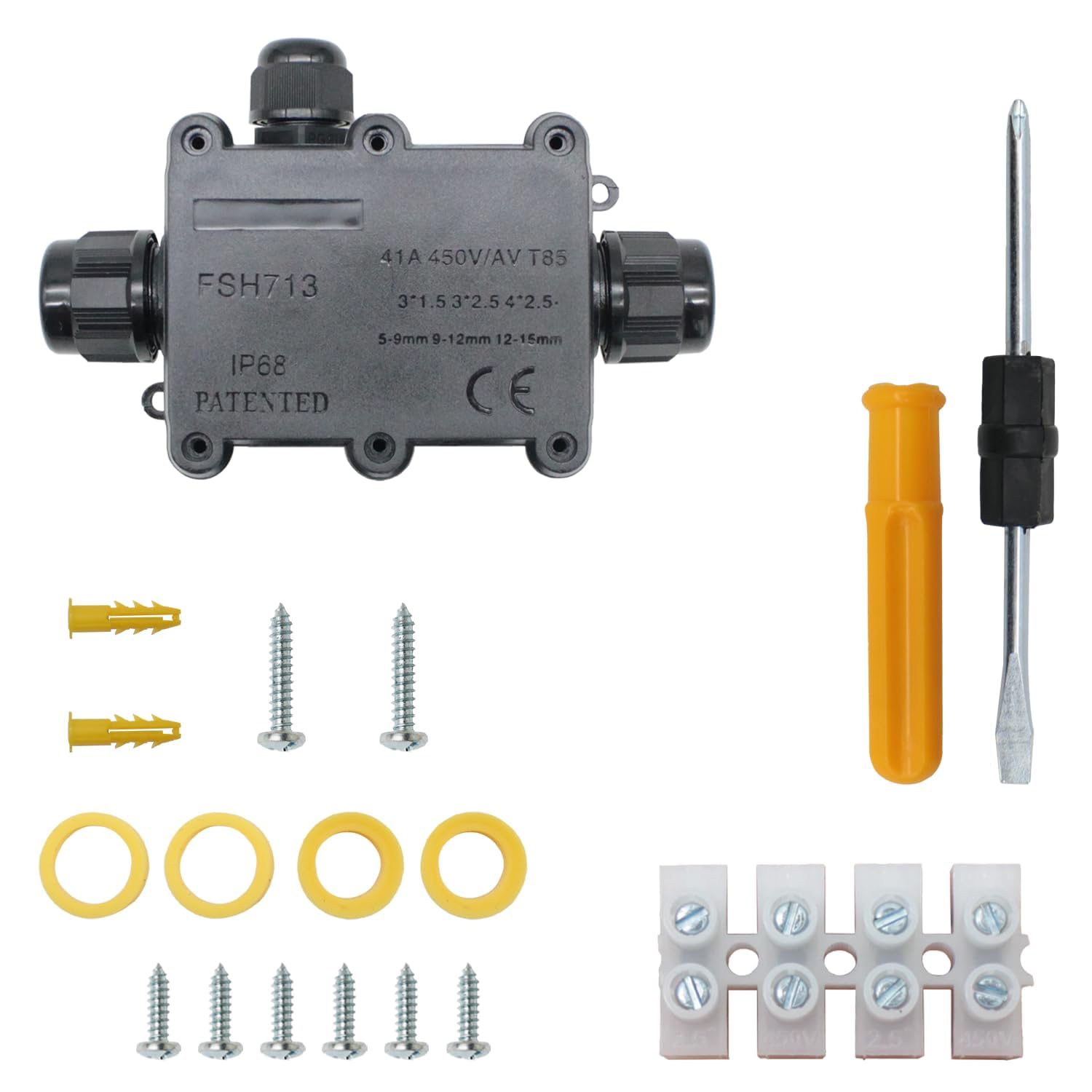

MAKERELE IP68 Open Splice Boxes
IP68 Open Splice Boxes for 3-Way to 6-Way Cable Layouts
MAKERELE open splice boxes are offered in 3-way, 4-way, 5-way, and 6-way layouts for multi-direction cable connections. Select the exact way count, SKU, size, and cable range required by the installation.
Five Key Selection Points
- Four layouts cover 3-way, 4-way, 5-way, and 6-way cable directions.
- Current source listings specify a 5–15 mm wire or cable range for the MK-FSH713 open-splice series.
- Each Shopify variant retains its own SKU, size label, price, inventory, and dedicated main image.
- The series uses a screw-terminal-block connection structure shown in the current exact source listings.
- The series is listed as IP68; the completed seal still depends on compatible cable diameter, intact seals, correct tightening, and installation conditions.
Way Count and Size Guide
| SKU | Layout | Current Size Label | Current Cable Label |
|---|---|---|---|
| MK-FSH713-3WAY | 3-way | 130 × 93 × 41 mm | 5–15 mm |
| MK-FSH713-4WAY | 4-way | 130 × 59 × 41 mm | 5–15 mm |
| MK-FSH713-5WAY | 5-way | 130 × 110 × 40 mm | 5–15 mm |
| MK-FSH713-6WAY | 6-way | 130 × 110 × 41 mm | 5–15 mm |
Selection Guide
Count the required cable directions before choosing a variant. A higher way count changes the entry layout and, in some cases, the outer dimensions; do not treat the four variants as the same enclosure with only a different name.
Installation Notes
Confirm cable outside diameter and connection space before ordering. Install every sealing component, tighten entries evenly, protect the terminal connection, and follow applicable electrical and burial rules. Certification marks visible in historical source images are not used here as independent certification claims.
FAQ
Can the same box be converted from 3-way to 6-way?
No. Choose the exact entry layout required for the project.
Do all variants use the same outer dimensions?
No. Use the size table for the selected SKU.
Where can I obtain project compliance documents?
Contact MAKERELE with the SKU and destination requirements. No unverified certification is claimed on this page.
| Size |
3way 130mm*93mm*41mm, 4way 130mm*59mm*41mm, 5way 130mm*110mm*40mm, 6way 130mm*110mm*41mm |
|---|
