MAKERELE NEMA 17 Stepper Motors
MAKERELE NEMA 17 Stepper Motors
This NEMA 17 family provides four body-length and torque choices with 1-, 3- or 5-piece packages where listed. Each option uses a 1.8° step angle, four leads and a 1 m cable. Select by the exact motor length, phase-current requirement and holding torque—not by frame size alone.
Key Features
- Four motor lengths: 23, 40, 48 and 60 mm options for different space and torque requirements.
- Clear electrical selection: 1.3 A, 1.7 A and 2.0 A choices are identified by model.
- Standard step angle: 1.8° per full step.
- Four-lead connection: supplied with a 1 m lead cable.
- Multiple package quantities: choose the exact pack shown in the variant selector.
Model Comparison
| Body length | Rated current | Holding torque | Step angle | Leads / cable | Available packs |
|---|---|---|---|---|---|
| 23 mm | 1.3 A | 15.5 N·cm / 21 oz-in | 1.8° | 4 leads / 1 m | 1, 3, 5 |
| 40 mm | 1.7 A | 44 N·cm / 62 oz-in | 1.8° | 4 leads / 1 m | 1, 3, 5 |
| 48 mm | 1.7 A | 51 N·cm / 72 oz-in | 1.8° | 4 leads / 1 m | 1, 3 |
| 60 mm | 2.0 A | 73 N·cm / 103 oz-in | 1.8° | 4 leads / 1 m | 1, 3 |
SKU and Pack Guide
| Length | 1-Pack | 3-Pack | 5-Pack |
|---|---|---|---|

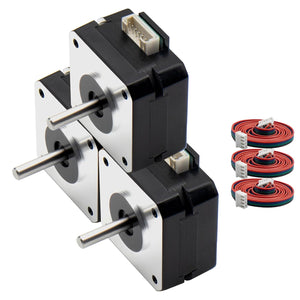

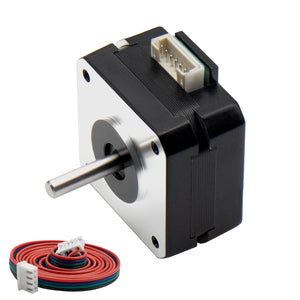

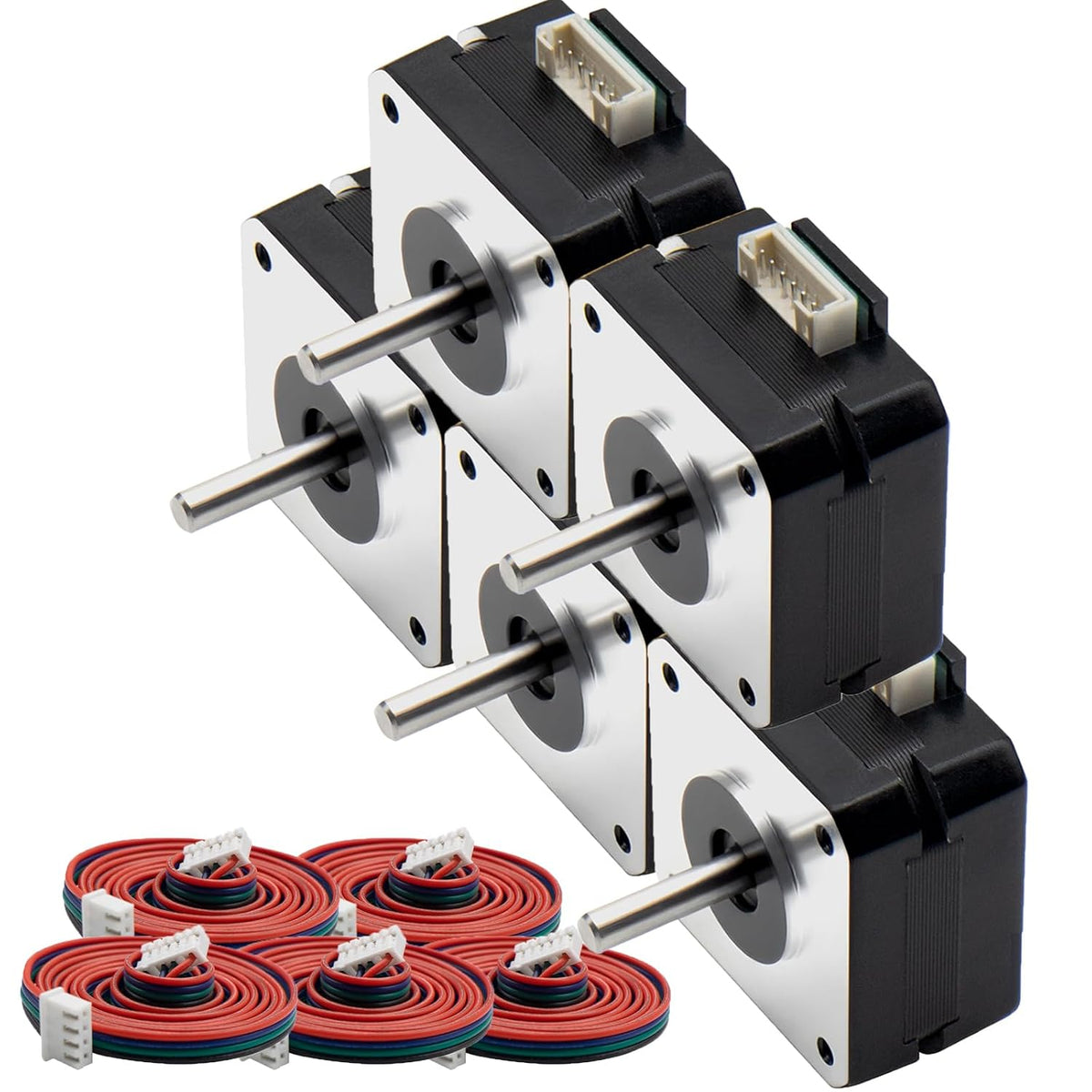

| 23 mm | MK-STEPPER-1723-1PC | MK-STEPPER-1723-3PC | MK-STEPPER-1723-5PC |

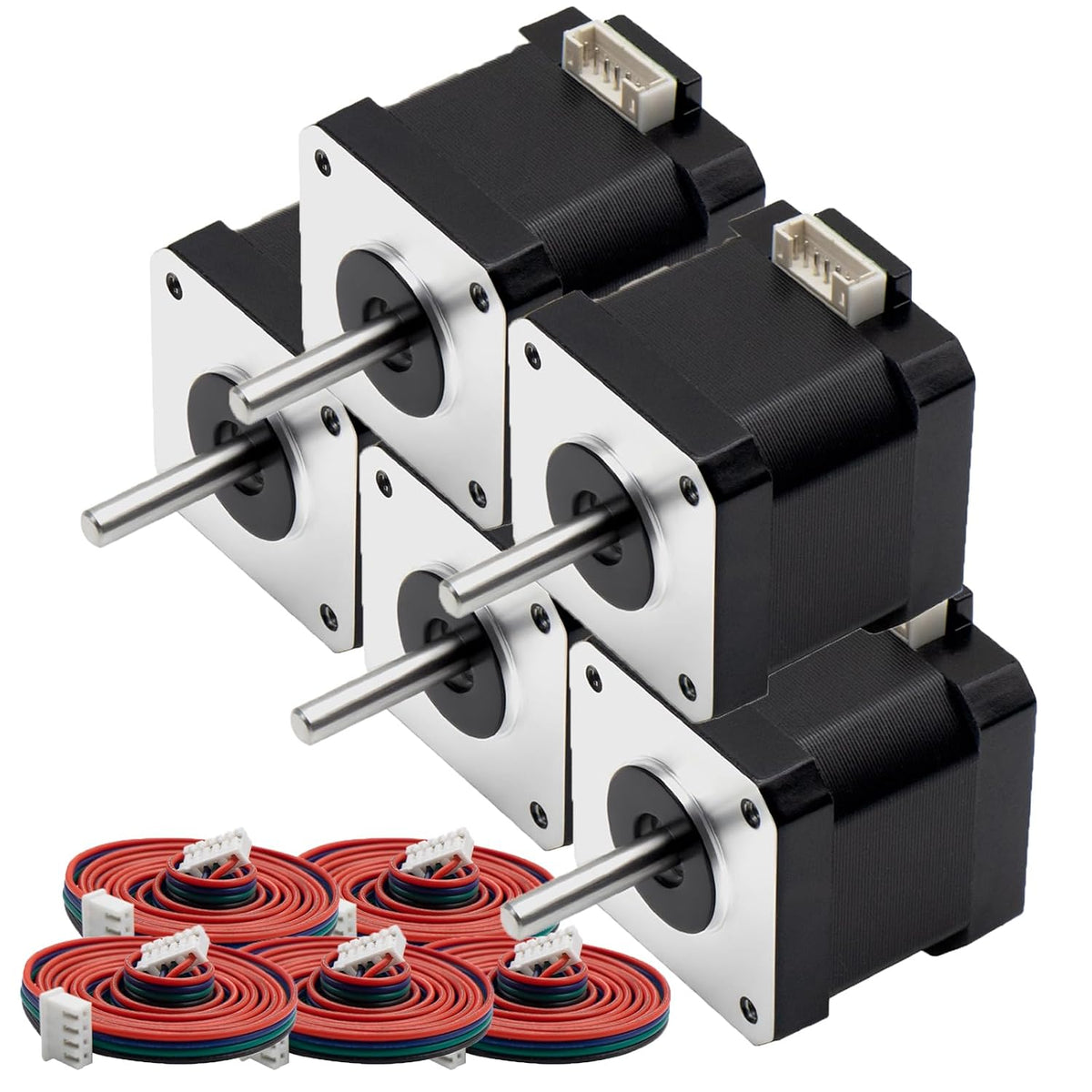

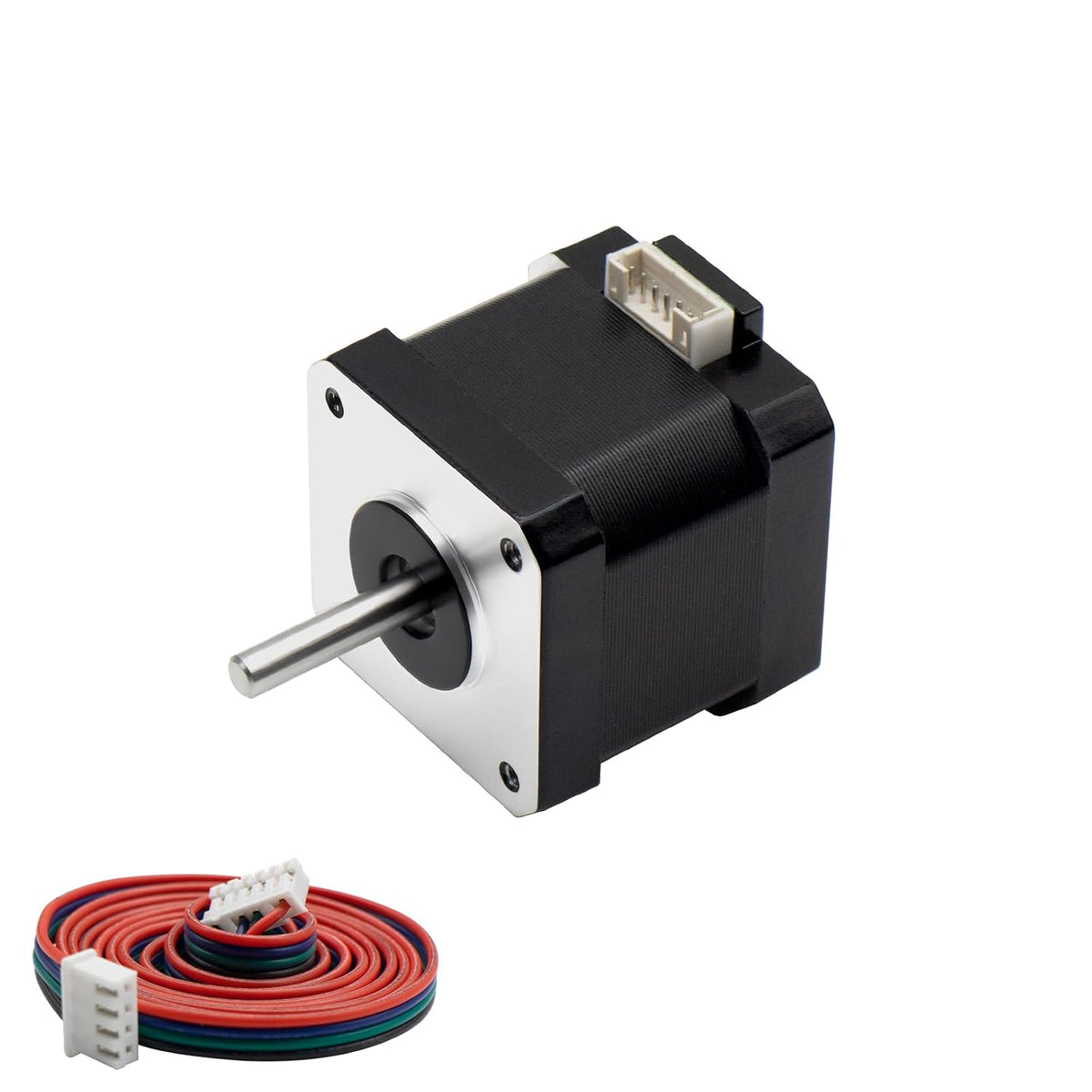

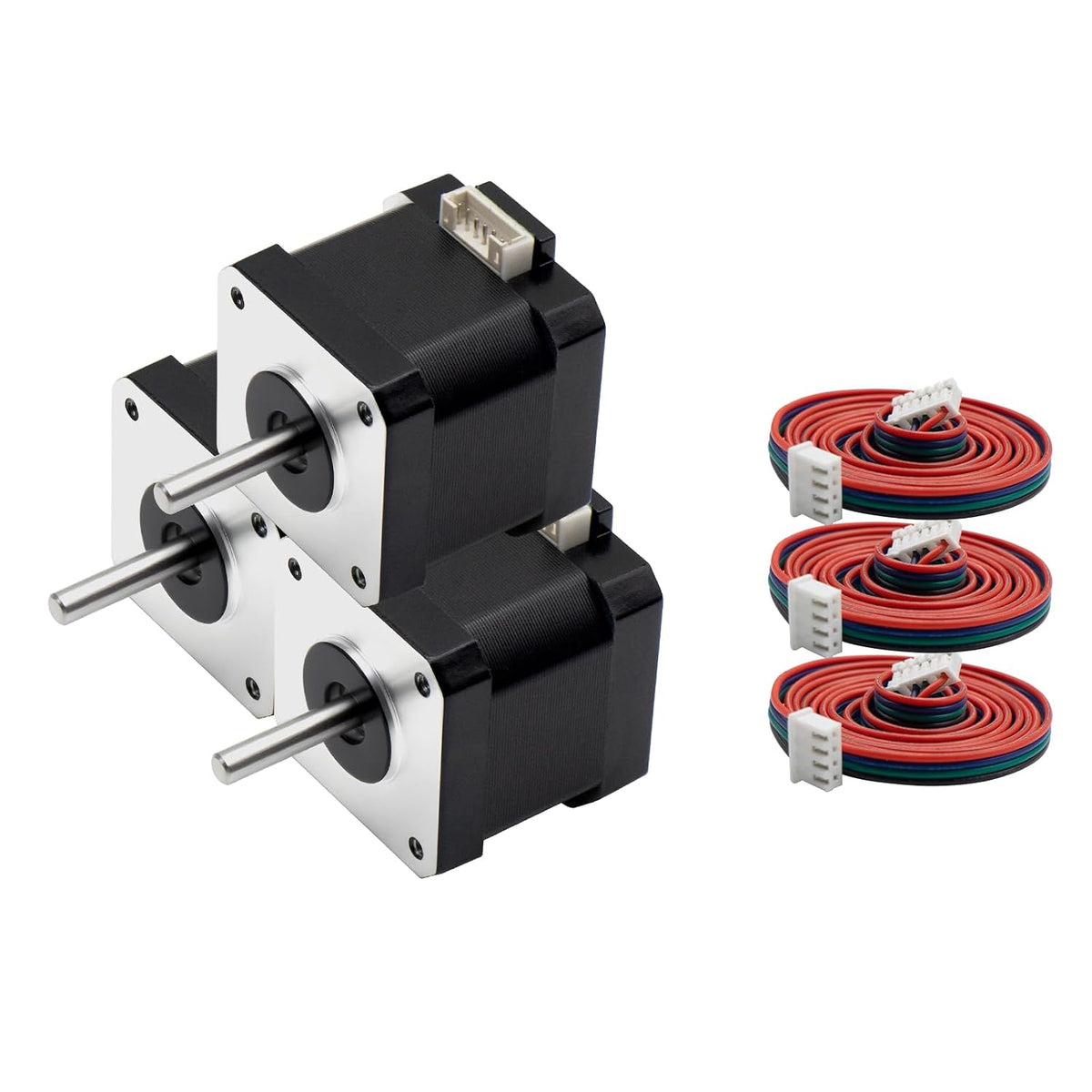

| 40 mm | MK-STEPPER-1740-1PC | MK-STEPPER-1740-3PC | MK-STEPPER-1740-5PC |

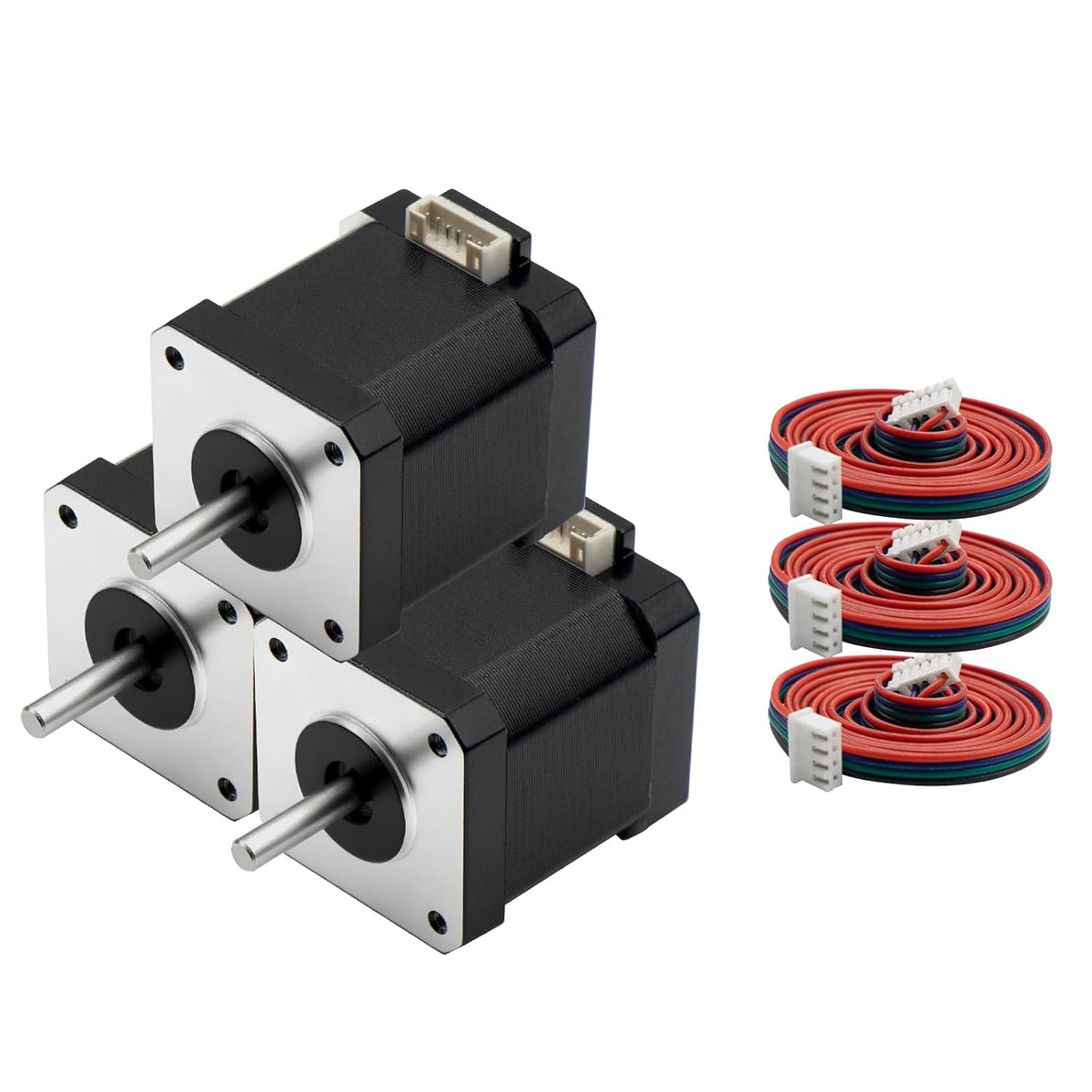

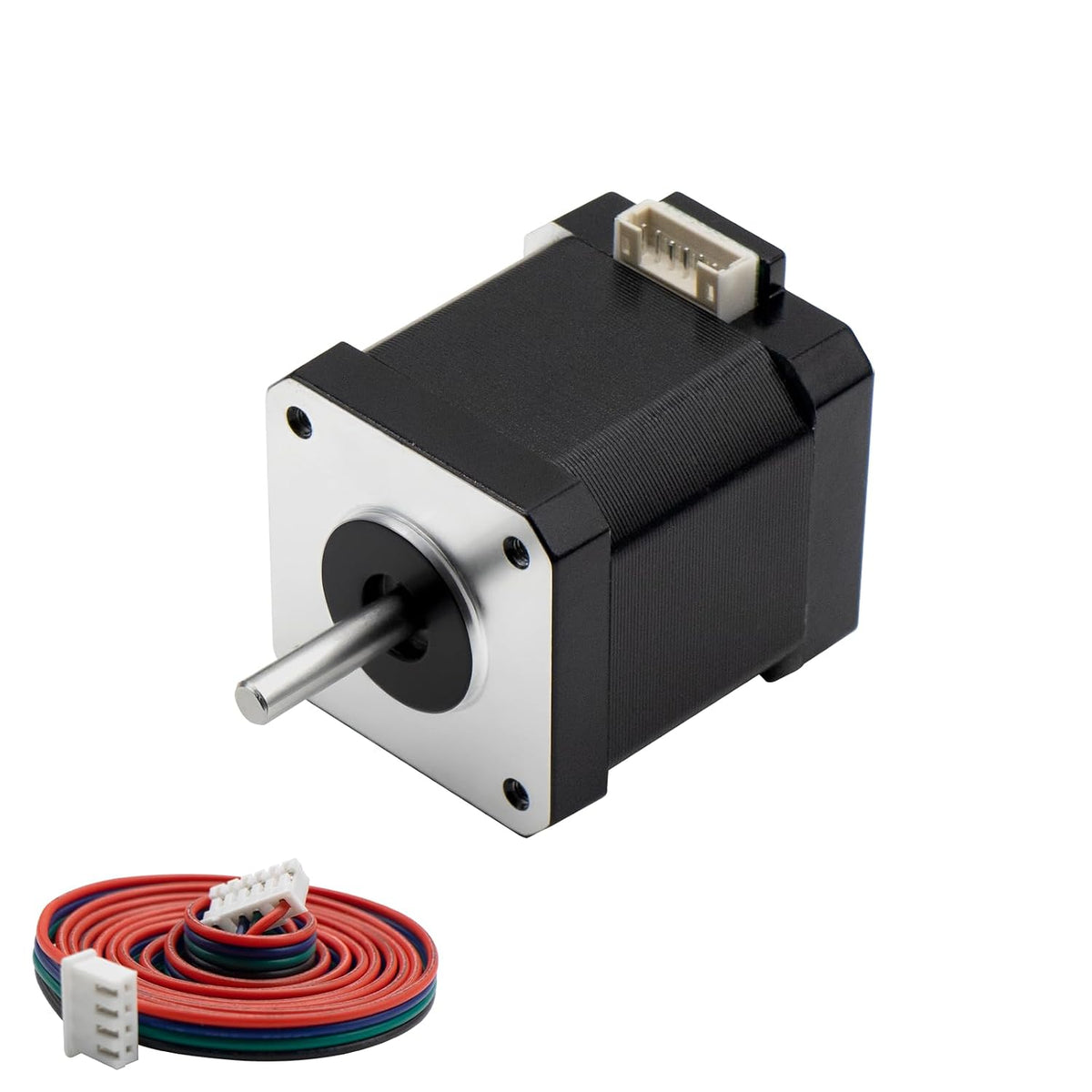

| 48 mm | MK-STEPPER-1748-1PC | MK-STEPPER-1748-3PC | — |

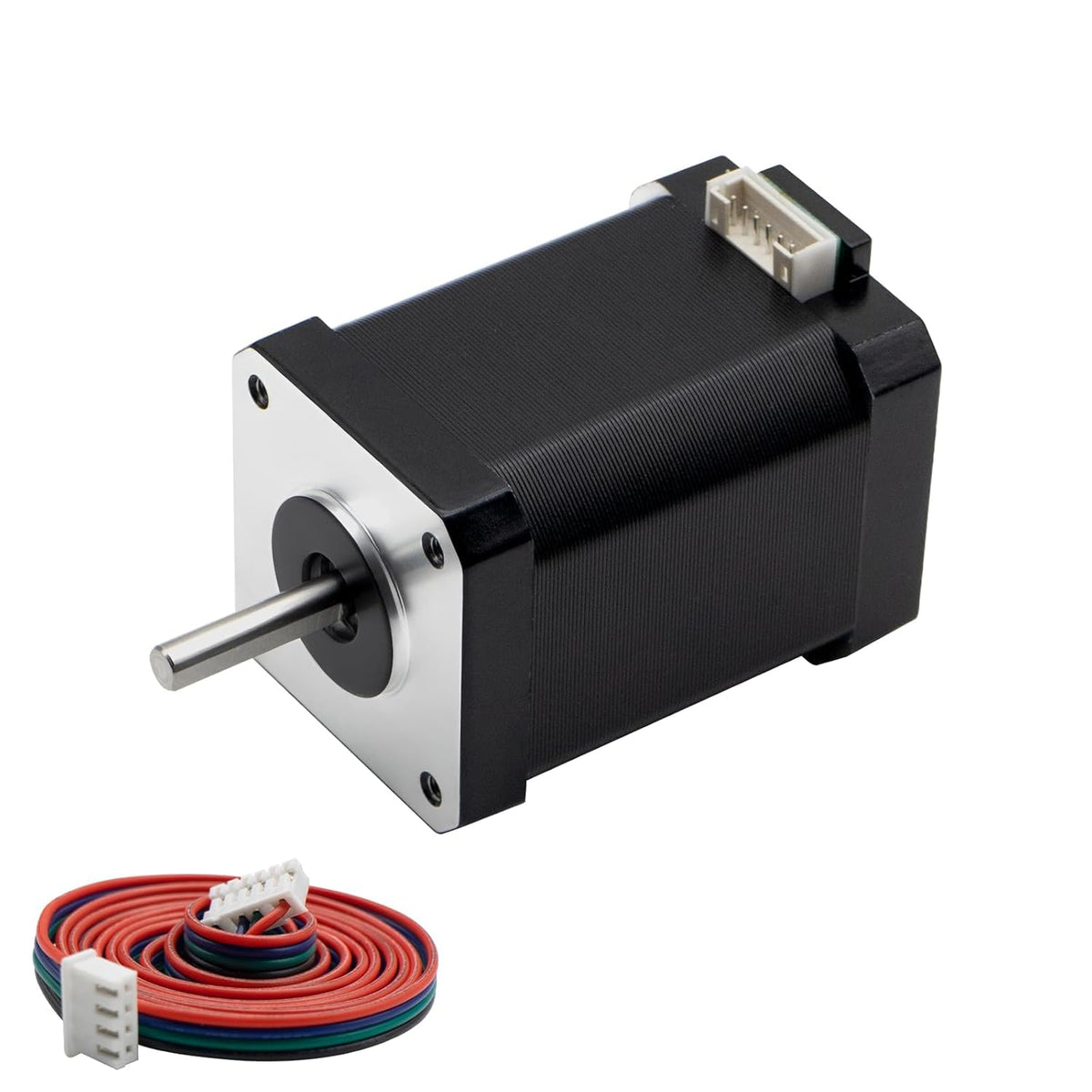

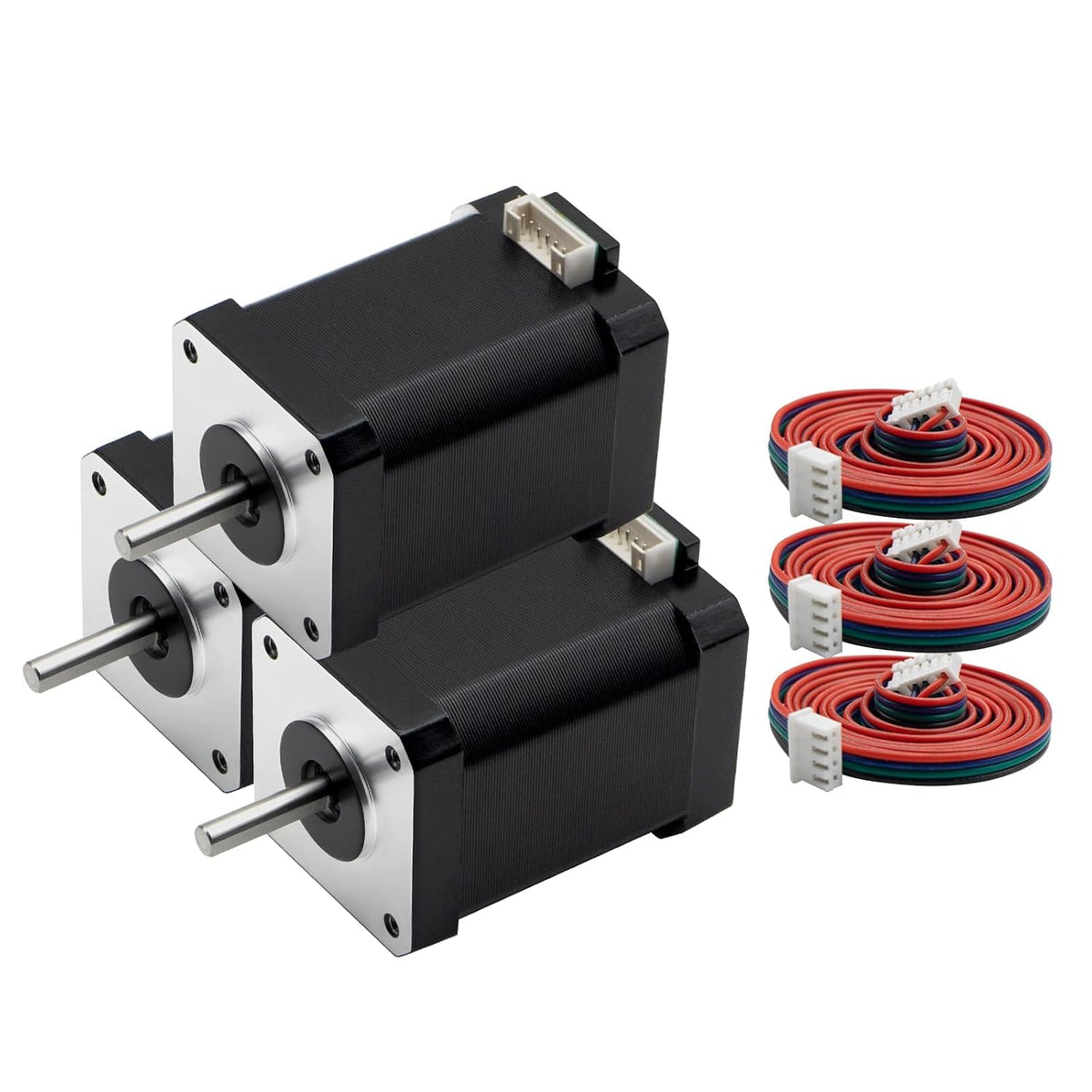

| 60 mm | MK-STEPPER-1760-1PC | MK-STEPPER-1760-3PC | — |
Selection Guidance
Verify mounting dimensions, shaft requirements, phase current, driver voltage and available space before ordering. Holding torque is a static reference and should not be treated as guaranteed running torque. Actual system performance depends on the driver, supply, acceleration, speed and mechanical load.
FAQ
Can all NEMA 17 motors use the same driver setting?
No. Match the driver current and supply to the selected motor's electrical data.
Are the 1-, 3- and 5-packs the same motor?
Within the same length option, the package quantity changes while the listed motor specification remains the same.
| Body Length |
23 mm, 40 mm, 48 mm, 60 mm |
|---|---|
| Pack |
1-Pack, 3-Pack, 5-Pack |
