MAKERELE IP68 Mini Waterproof Junction Boxes
Palm-sized IP68 junction box protects 6–8 mm cable splices to 1 m depth, rated 450 V/16 A from –40 °C to +125 °C—perfect for garden lights, CCTV, or pond pumps.
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
MAKERELE IP68 Mini Waterproof Junction Boxes
Compact IP68 Junction Boxes for 2-Way and 3-Way Cable Connections
MAKERELE mini junction boxes provide compact enclosure options for outdoor cable joins. Choose the way count, housing style, cable range, and dimensions that match the selected SKU before installation.
Five Key Selection Points
- Available in 2-way and 3-way layouts for inline or branch cable connections.

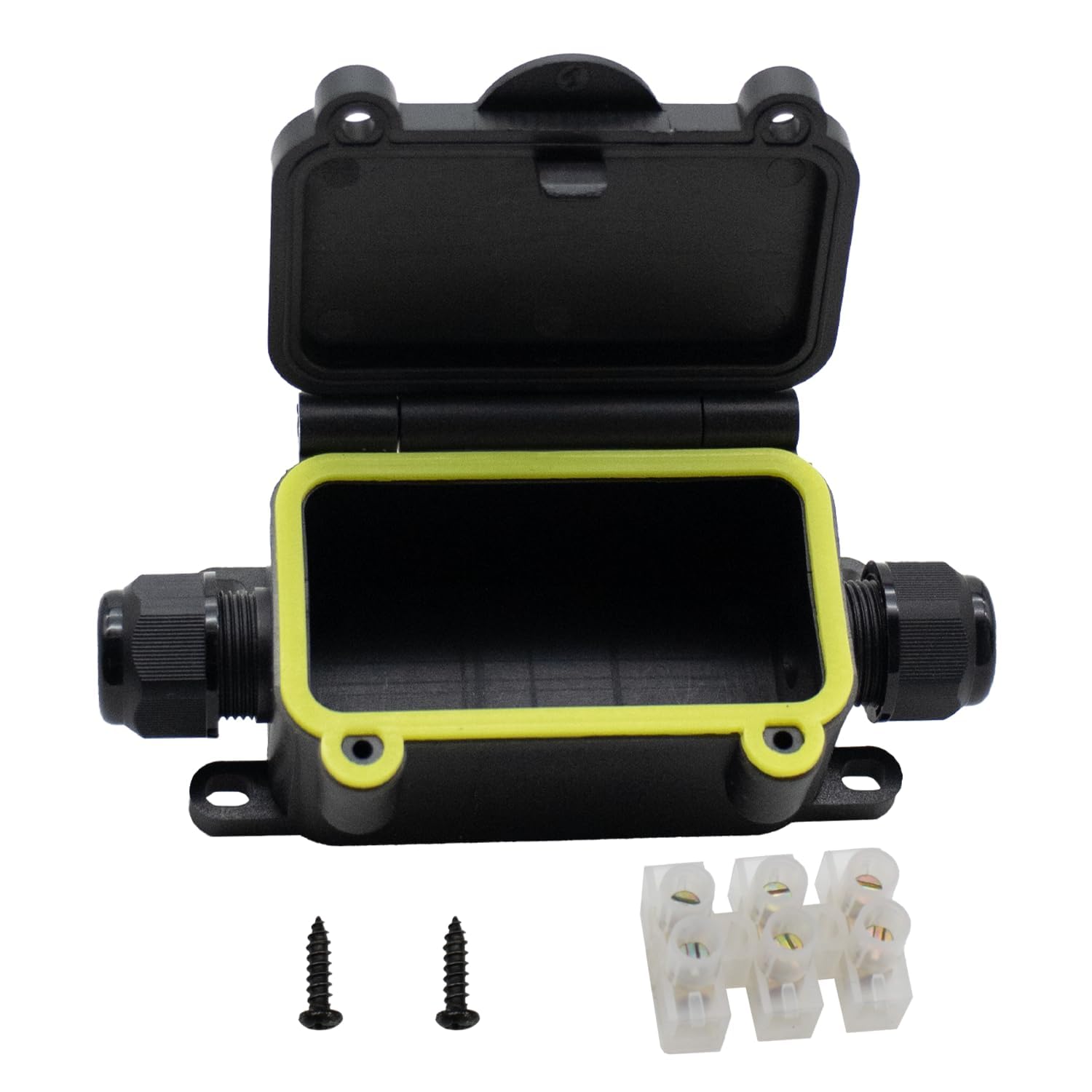

- Two body formats are listed: compact clamshell models and larger screw-terminal-base models.
- Current source listings identify up to 8 mm cable diameter for the small models and up to 12 mm for the larger terminal-base models.
- Each Shopify variant keeps its own SKU, dimensions, price, inventory, and dedicated product image.
- The series is listed as IP68; sealing performance depends on correct cable sizing, intact seals, full assembly, and the installation environment.
Model and Size Guide
| SKU | Layout | Current Size Label | Current Cable Label | Body Style |
|---|---|---|---|---|
| MK-FL-2W-SS | 2-way | 3.15 × 1 × 1.4 in | Up to 8 mm | Small clamshell |
| MK-FL-STB-2W-LS | 2-way | 3.66 × 1.5 × 1.42 in | Up to 12 mm | Screw-terminal base |
| MK-FL-3W-SS | 3-way | 3.15 × 1.06 × 1.46 in | Up to 8 mm | Small clamshell |
| MK-FL-STB-3W-LS | 3-way | 3.66 × 1.54 × 1.46 in | Up to 12 mm | Screw-terminal base |
Choosing the Correct Version
Use the 2-way version for a straight cable path and a 3-way version for a branch layout. The small and terminal-base bodies are different structures; confirm the selected SKU rather than using one image or dimension for every option.
Installation Notes
Measure the cable outside diameter before ordering. Keep sealing parts clean and undamaged, tighten entries evenly, and follow applicable electrical and burial requirements. The enclosure does not replace any additional protection required by local rules.
FAQ
Do all four variants use the same cable size?
No. The current listings separate the smaller up-to-8-mm models from the larger up-to-12-mm terminal-base models.
Are the 2-way and 3-way boxes interchangeable?
No. Select the way count that matches the number of cable directions in the connection.
Are temperature ratings included?
No verified series-wide temperature rating is published on this page. Contact MAKERELE if a project requires a documented temperature or compliance specification.
| Size |
2way 3.15in*1in*1.4in, 2way 3.66in*1.5in*1.42in, 3way 3.15in*1.06in*1.46in, 3way 3.66in*1.54in*1.46in |
|---|
