MAKERELE MDR DIN Rail Power Supplies
MAKERELE MDR DIN rail power supplies combine 20 W and 60 W power choices with 12 V DC and 24 V DC output variants. Use the complete model code to keep power and voltage requirements aligned.
Key features
- Two power families: source-listed 20 W and 60 W choices.
- 12 V and 24 V options: output voltage is identified in the model suffix.
- Compact DIN rail format: intended for control-cabinet and equipment integration.
- Model-specific variants: every current Shopify option retains its own exact main image and SKU.
- Selection boundary: confirm input supply, DC voltage, load demand, thermal conditions and enclosure design before use.
Model reference
| Model | Source-listed output | Source-listed power | SKU |
|---|---|---|---|

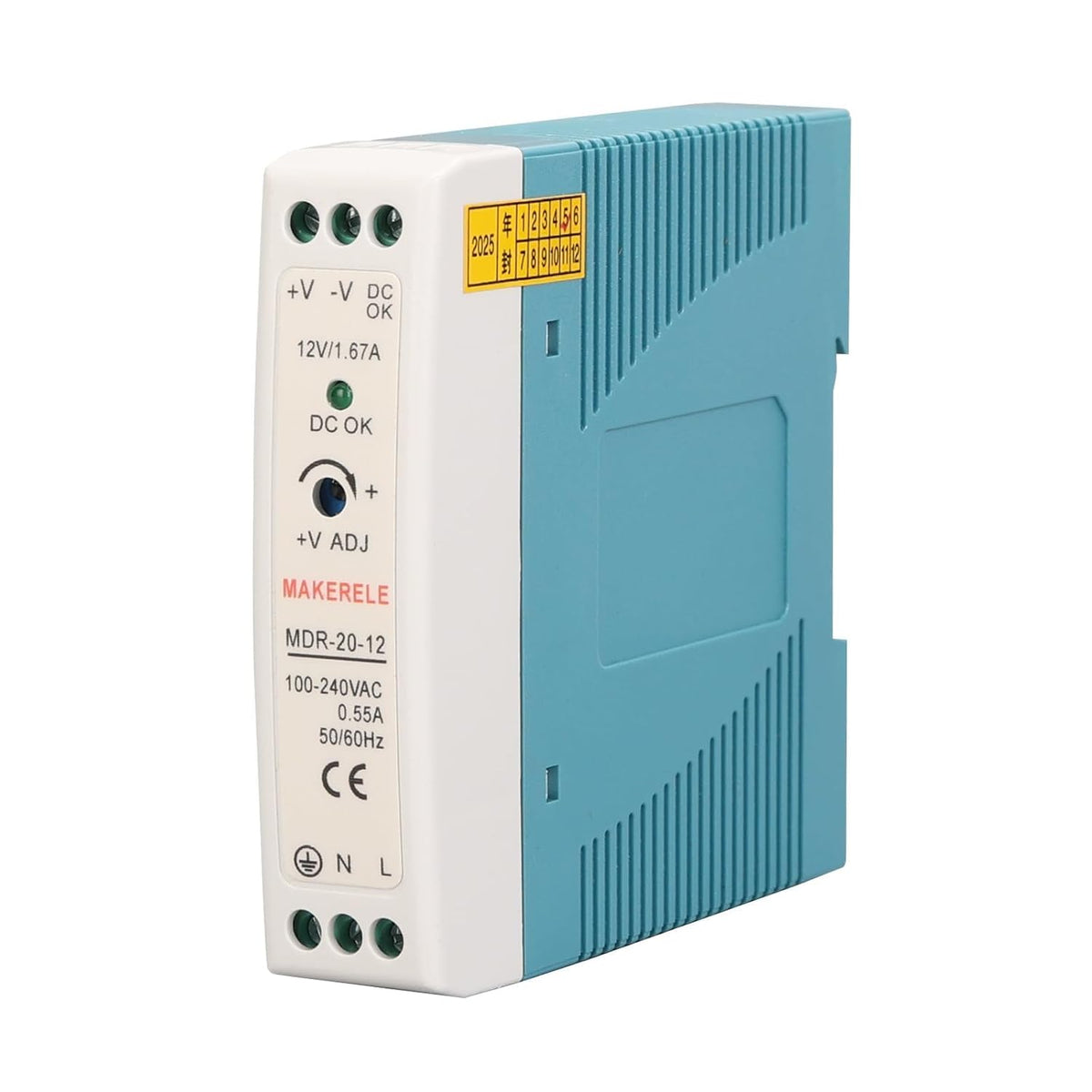

| MDR20-12 | 12 V DC | 20 W | MK-SMPS-MDR20-12 |

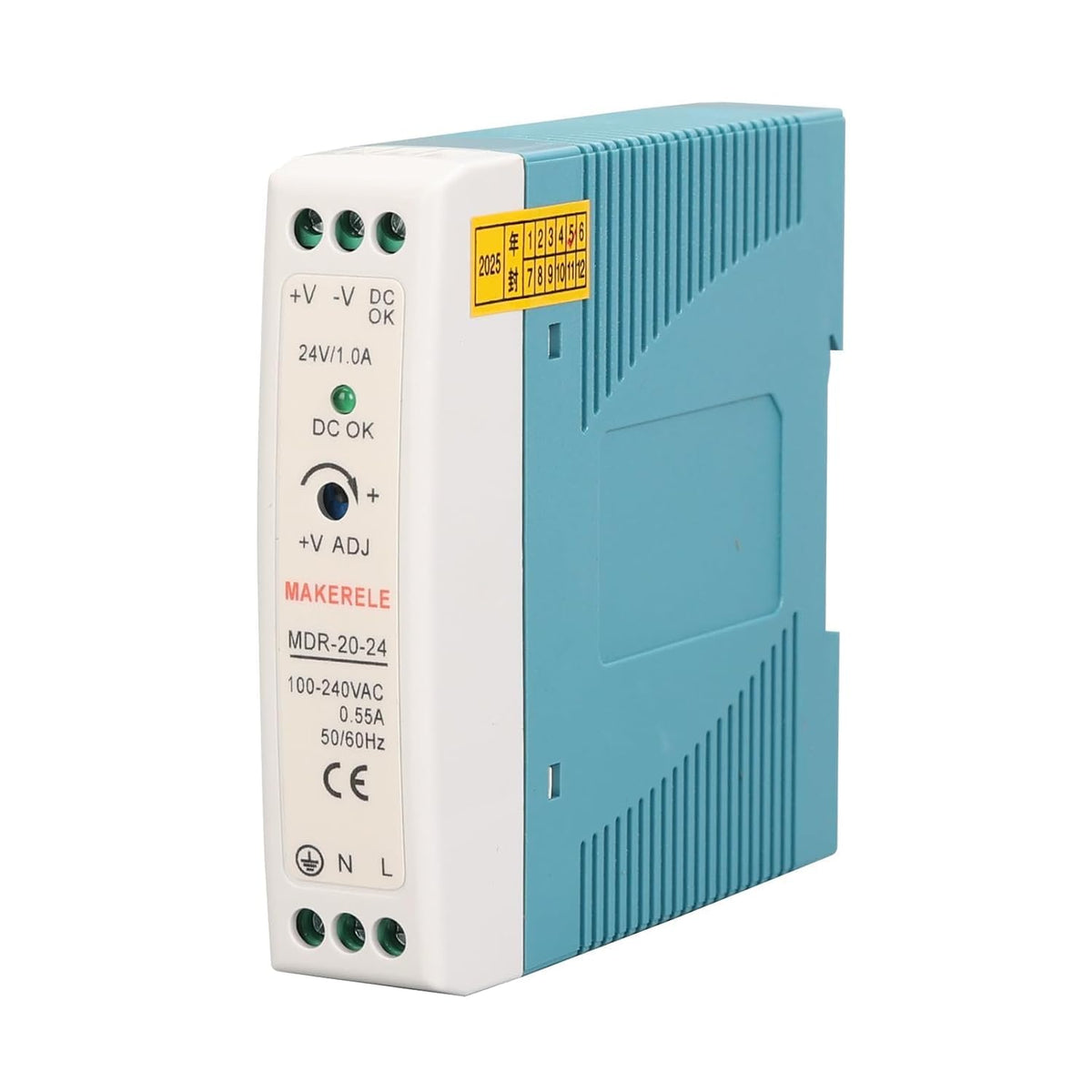

| MDR20-24 | 24 V DC | 20 W | MK-SMPS-MDR20-24 |

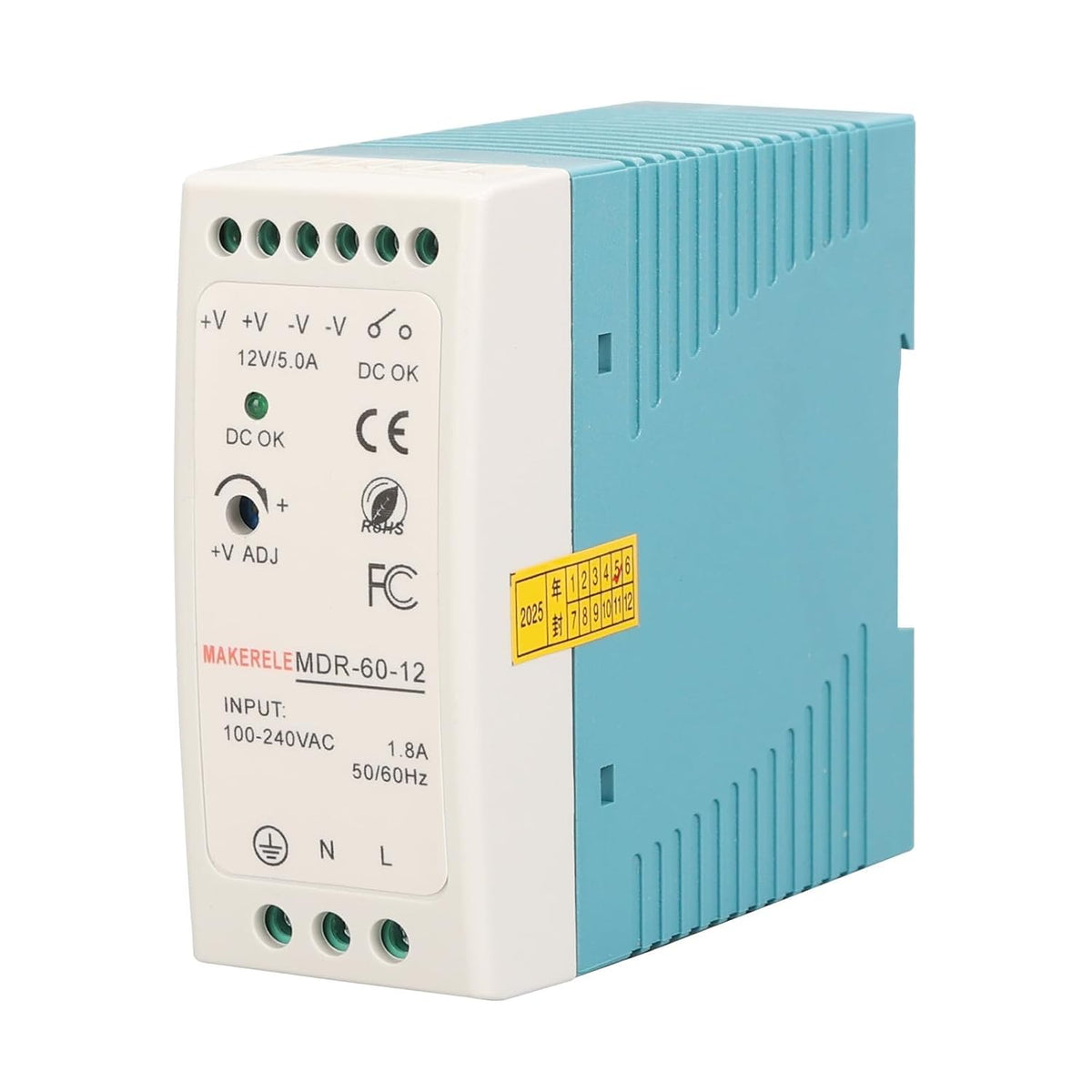

| MDR60-12 | 12 V DC | 60 W | MK-SMPS-MDR60-12 |

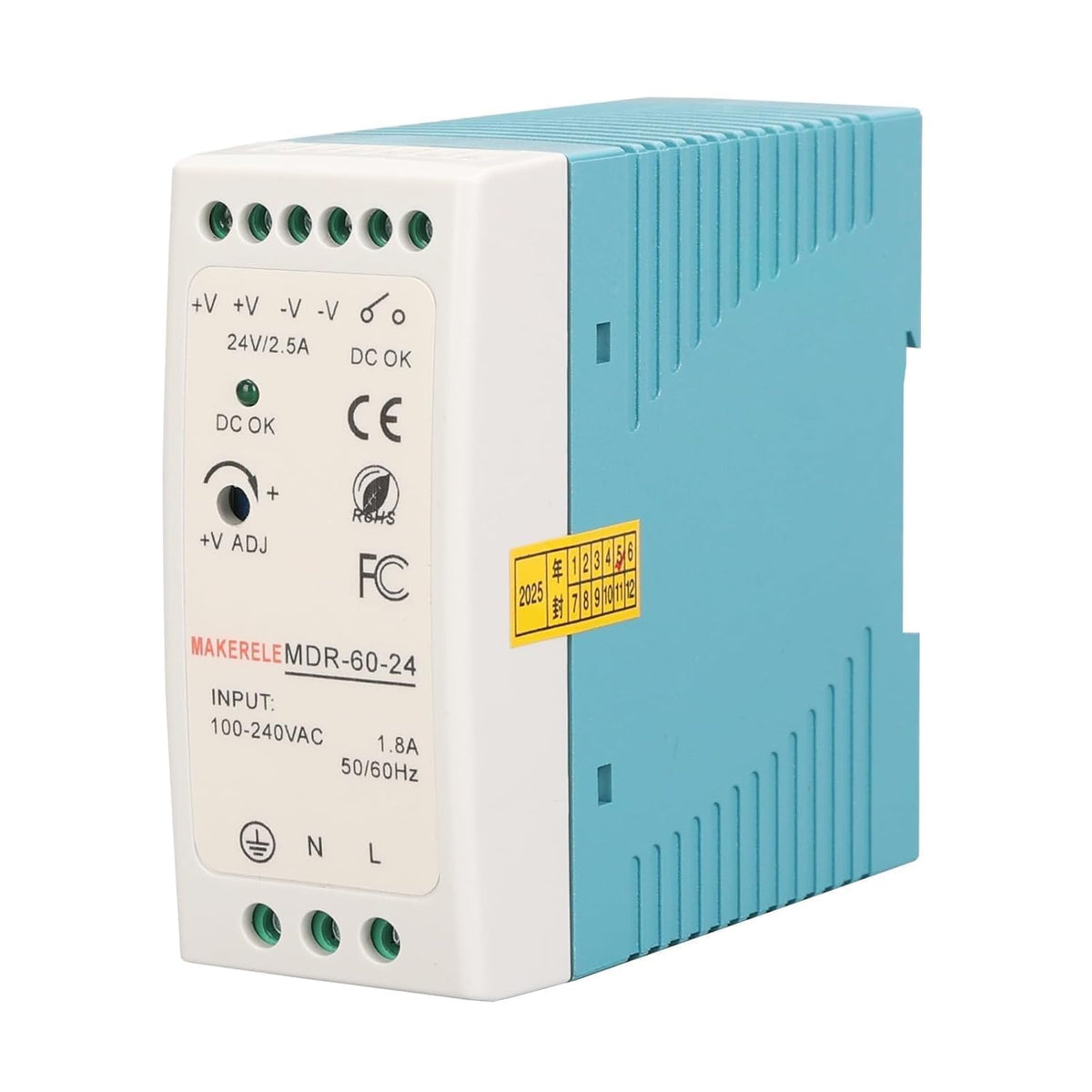

| MDR60-24 | 24 V DC | 60 W | MK-SMPS-MDR60-24 |
Selection and installation notes
- Choose the voltage required by the load, then select sufficient source-listed power for the project.
- Do not transfer terminal, current or dimensional details from one MDR model to another.
- Follow the markings on the actual selected unit and maintain suitable panel clearance and ventilation.
- Disconnect and verify isolation before wiring; installation and load calculations should be completed by qualified personnel.
FAQ
What is the difference between MDR20 and MDR60?
The source listing separates them by rated power: 20 W or 60 W. Both families include 12 V and 24 V choices.
Can the output voltage be chosen after installation?
No. Select the correct model code before purchase and verify the nameplate before energizing.
| Model |
MDR20-12, MDR20-24, MDR60-12, MDR60-24 |
|---|
