MAKERELE EDR120 DIN Rail Power Supplies
MAKERELE EDR120 DIN rail power supplies are offered as 120 W models with 12 V DC and 24 V DC output choices. The current source listings identify a 10 A reference for EDR120-12 and a 5 A reference for EDR120-24.
Key features
- 120 W family: both current variants are source-listed at 120 W.
- Two DC outputs: 12 V and 24 V variants remain separate.
- Source-listed current reference: 10 A for the 12 V model and 5 A for the 24 V model.
- DIN rail mounting format: suited to integration into an appropriate electrical enclosure.
- Exact selection: match model, voltage, current and project load before ordering.
Model reference
| Model | Output | Source-listed current | Power | SKU |
|---|---|---|---|---|

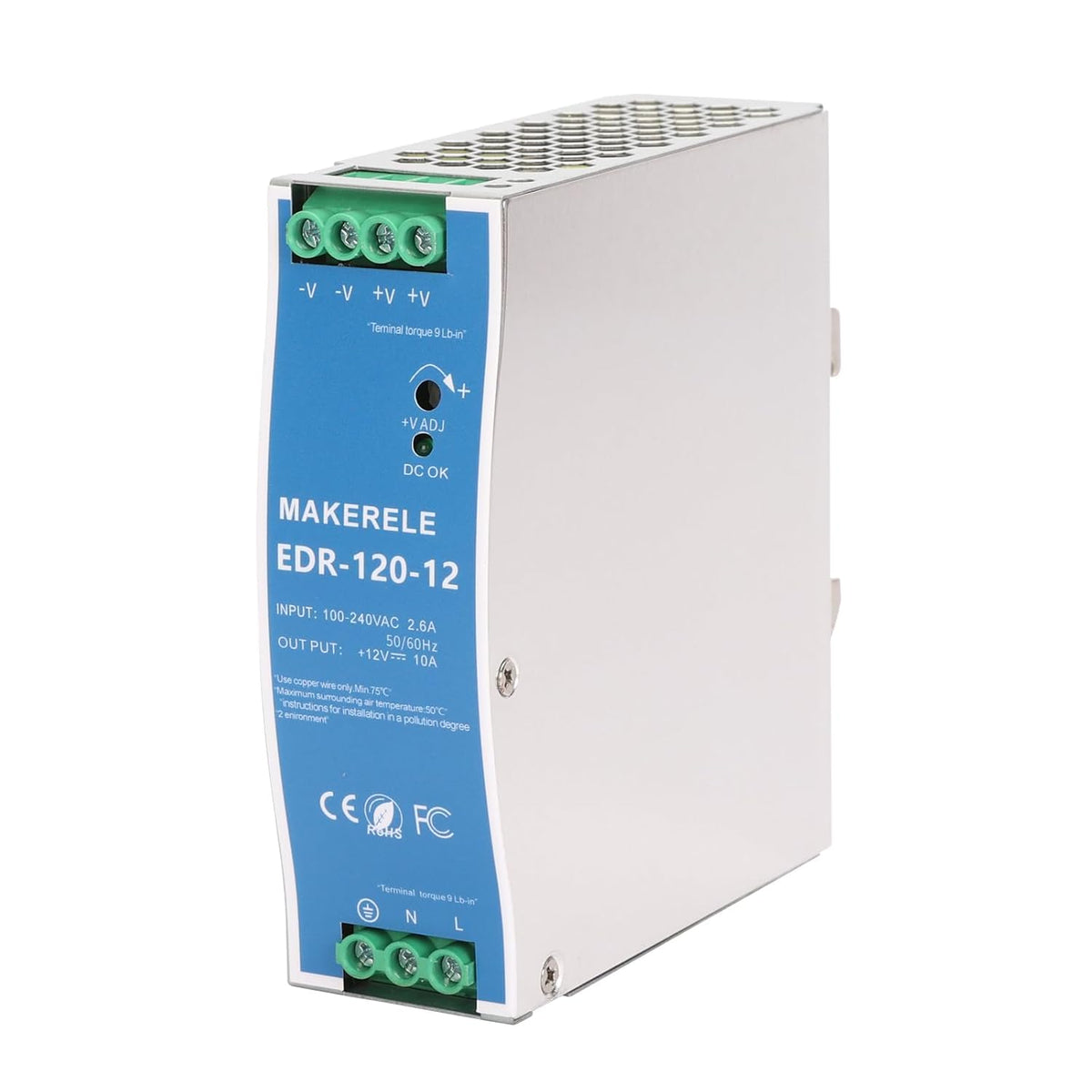

| EDR120-12 | 12 V DC | 10 A | 120 W | MK-SMPS-EDR120-12 |

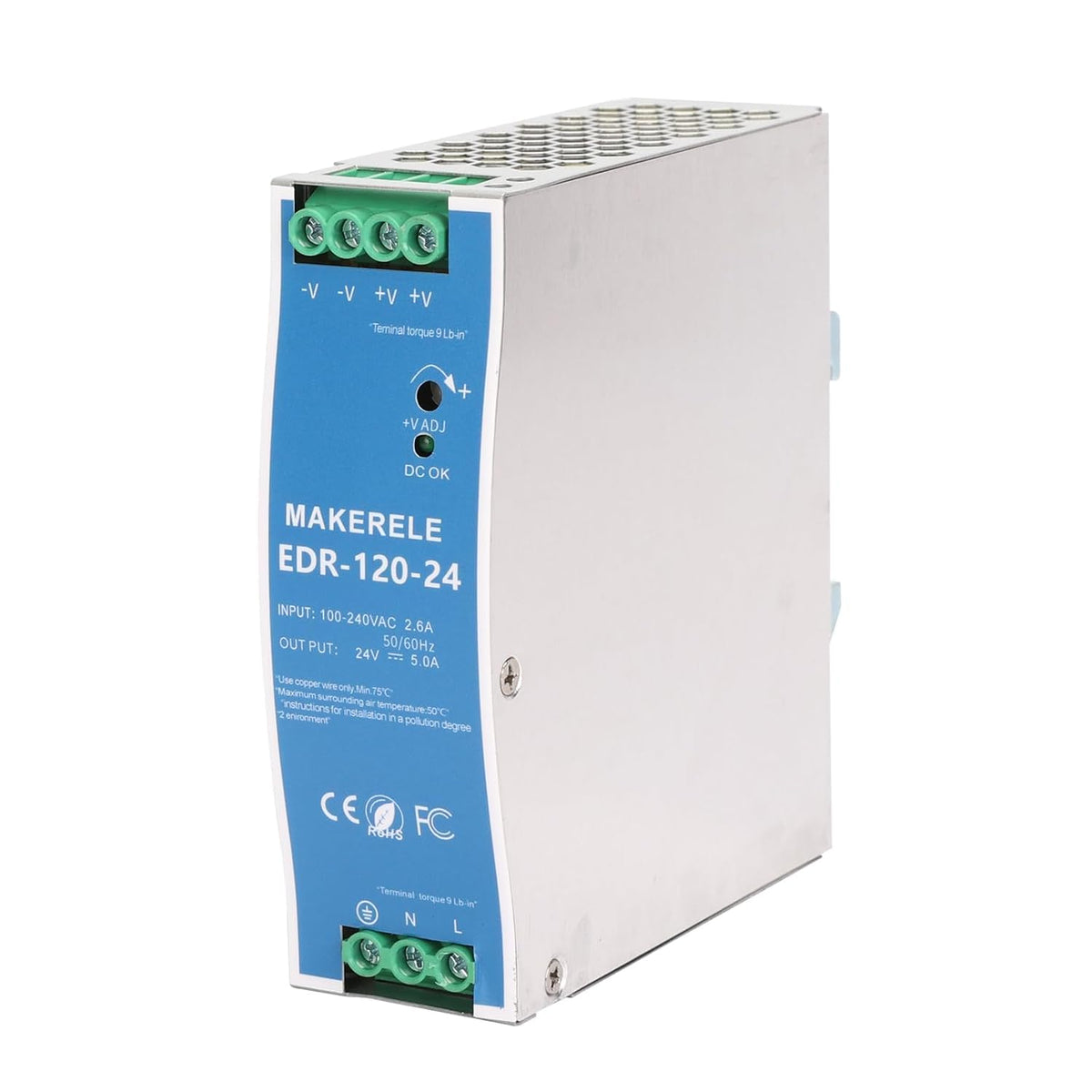

| EDR120-24 | 24 V DC | 5 A | 120 W | MK-SMPS-EDR120-24 |
Selection and installation notes
- Confirm the required DC voltage and continuous load current before selecting the model.
- Check the actual unit's nameplate, input arrangement and terminal markings before energizing.
- Maintain required clearance, ventilation and enclosure protection for the installation environment.
- Disconnect and verify isolation before wiring; qualified personnel should complete electrical installation.
FAQ
Why do the two models have different current ratings?
They share a 120 W source-listed family while using different output voltages; use the exact current shown for the selected model.
Are certifications included in this page?
No certification claim is made here. Confirm any project-specific compliance requirement from current supporting documentation before use.
| Model |
EDR120-12, EDR120-24 |
|---|
