MAKERELE IP55/IP65 ABS Waterproof Electrical Junction Boxes

Rugged IP65 ABS enclosure keeps weather, dust and curious fingers away from your electronics. Nine ready-stock sizes drop into DIY IoT, CCTV, sensor or solar projects in minutes—just drill and fit glands. CE / RoHS compliant plastic handles −17 °C → 80 °C, and the UL94 HB fire-rated resin won’t crack under UV or impact. One box, endless projects.

Sale price $5.20
Color: White
Size: 2.76"*1.96"
Add to Wishlist Add to Compare

Ask a question
Share

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe Checkout

Visa
PayPal
Mastercard
American Express
Amazon
MAKERELE HR-RT5050size70x50 white IP55 round junction box 2.76 x 1.96 in

MAKERELE IP55/IP65 ABS Waterproof Electrical Junction Boxes

MAKERELE ABS Waterproof Electrical Junction Boxes

This family covers ten white ABS surface-mount enclosures. Select by SKU and nominal outside dimensions. The two compact round versions are rated IP55; the eight rectangular HR-RT versions are rated IP65.

Key Features

  • White ABS enclosure with a gasketed cover for indoor and outdoor wiring projects.
  • Reserved cable-entry knockouts; entry count varies by enclosure size.
  • Surface-mount format for wiring, sensors, controls, lighting and electronics projects.
  • Each source package includes one junction box, four mounting screws and four expansion anchors.
  • Exact size charts are included in the gallery for the corresponding SKU.

Choose the Correct Size and Rating

SKU Nominal Size Shape Ingress Rating Cable Entries
MKHR-RT5050size70*50 D70 × H50 mm (2.76 × 1.96 in) Round IP55 4
MKHR-RT8050 D80 × H50 mm (3.1 × 2 in) Round IP55 4
MKHR-RT10010070 100 × 100 × 70 mm (3.9 × 3.9 × 2.8 in) Rectangular IP65 7
MKHR-RT15011070 150 × 110 × 70 mm (5.9 × 4.3 × 2.8 in) Rectangular IP65 10
MKHR-RT15015070 150 × 150 × 70 mm (5.9 × 5.9 × 2.8 in) Rectangular IP65 8
MKHR-RT20015580 200 × 155 × 80 mm (7.9 × 6.1 × 3.1 in) Rectangular IP65 10
MKHR-RT20020080 200 × 200 × 80 mm (7.9 × 7.9 × 3.1 in) Rectangular IP65 12
MKHR-RT25520080 255 × 200 × 80 mm (10 × 7.9 × 3.1 in) Rectangular IP65 12

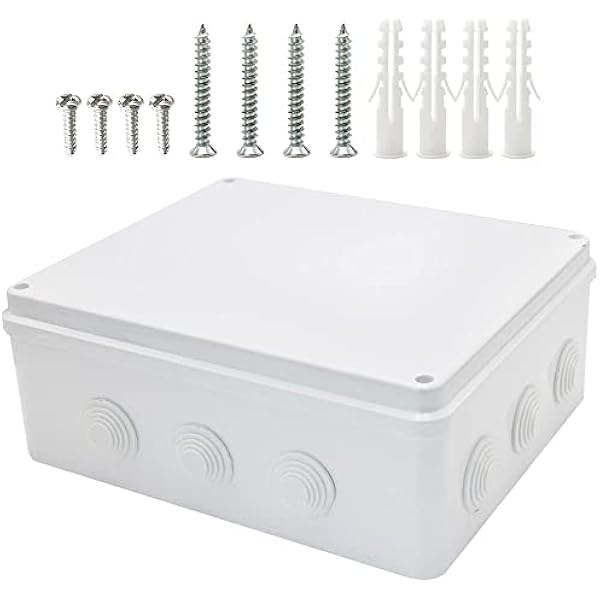

MKHR-RT300250120 300 × 250 × 120 mm (11.8 × 9.8 × 4.7 in) Rectangular IP65 12
MKHR-RT400350120 400 × 350 × 120 mm (15.7 × 13.8 × 4.7 in) Rectangular IP65 16

Product Details

MAKERELE 80 x 50 mm round ABS junction box IP55 use reference
Round 70 × 50 mm and 80 × 50 mm variants are IP55.
MAKERELE rectangular ABS junction box construction details
Rectangular HR-RT construction details.
MAKERELE rectangular HR-RT IP65 junction box outdoor use reference
Rectangular HR-RT variants are IP65.

Installation Checklist

  • Confirm the selected SKU, nominal outside dimensions and entry count before drilling or mounting.
  • Choose cable glands or conduit fittings separately to match the cable and required sealing method.
  • Keep the cover gasket clean and seated evenly before tightening the cover.
  • Follow applicable local electrical rules and use qualified installation where required.

FAQ

Are all variants IP65?
No. The 70 × 50 mm and 80 × 50 mm round variants are IP55. The rectangular HR-RT variants listed in the table are IP65.

Do the gallery images apply to every size?
No. Size-chart images apply only to the SKU named in the image alt text. The round IP55 images do not represent the rectangular IP65 variants.

Are cable glands included?
Cable glands are not listed as included. Select them separately for the cable diameter and sealing requirement.

Can MAKERELE provide certification documents?
This page does not make a public CE or RoHS certification claim. Contact MAKERELE before specification if current documentation is required.

Project Support

For bulk quantities or help choosing enclosure dimensions, send the required outside size, cable-entry plan and project quantity to MAKERELE.

Color

White
Size

2.76"*1.96", 3.1"*2", 3.9"*3.9"*2.8", 5.9"*4.3"*2.8", 5.9"*5.9"*2.8", 7.9"*6.1"*3.1", 7.9"*7.9"*3.1", 10"*7.9"*3.1", 15.7"*13.8"*4.7", 11.8"*9.8"*4.7"
